10 Overhead Camera Mounts Ranked by Payload and Reach

An overhead rig has one job that is easy to describe and surprisingly hard to specify: hold the camera above the work without consuming the work surface. A phone filming recipe steps does not need the same hardware as a mirrorless camera recording product assembly, and a single clamp arm is not equivalent to a three-stand crossbar rig.

This guide compares ten products from iBOLT, Arkon, SmallRig, Elgato, and NEEWER. It is differentiated from iBOLT's earlier broad livestream guide by focusing on tabletop top-down hardware, published reach, load, clamp fit, and device interface.

Key Verdict

Best overall for an iBOLT camera desk rig: iBOLT Stream-Cast DSLR Desk Rig. Its published 5 lb capacity and top-down or front-facing positioning cover camera, phone, and projector workflows in one desk-mounted configuration. Choose the NEEWER NK003 for a three-stand, two-crossbar tabletop structure with a listed 6.6 lb platform load.

Disclosure: iBOLT publishes this guide and manufactures four listed products. The products were not physically tested for this article. Official manufacturer pages were reviewed on August 5, 2026. Unknown values remain unknown. Prices are omitted because several products need separately purchased phone clamps, arms, cases, or adapters.

Methodology and quick comparison

We weighted published load capacity at 20 percent, overhead reach and geometry at 20 percent, desk or structural attachment fit at 15 percent, device interface at 15 percent, adjustability at 10 percent, included components at 10 percent, and modular expansion at 10 percent. Manufacturer load figures are not independent test results. Each award is limited to the documented use case.

The ten specification-based picks

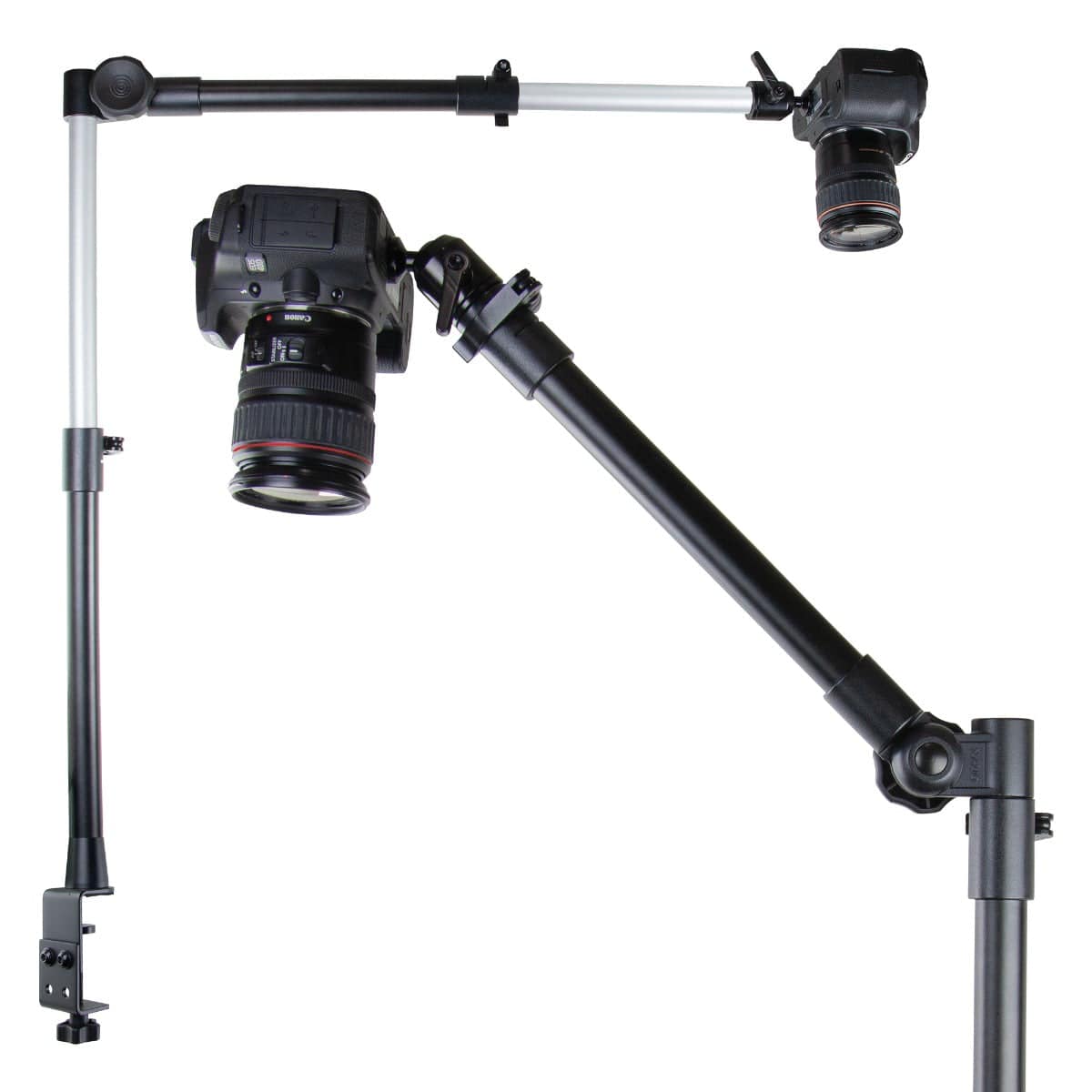

1. iBOLT Stream-Cast DSLR Desk Rig

Award: Best iBOLT camera desk rig. iBOLT publishes a 5 lb capacity and describes both top-down and front-facing use for cameras, phones, and projectors. This is the strongest iBOLT starting point here when a creator uses more than a phone. Verify desk construction, edge clearance, camera weight, lens weight, and adapter hardware as one system.

2. NEEWER NK003 Overhead Camera Mount Rig

Award: Best multi-stand tabletop rig. NEEWER lists three desktop stands, two crossbars, a 6.6 lb top-down platform load, 6.5cm padded clamps, a phone holder for devices 55 to 85mm wide, and multiple 1/4 inch attachment components. At 9.4 lb, it is a larger studio structure rather than a compact single arm.

3. Arkon Remarkable Creator Studio Mount

Award: Best included device-holder set. Arkon includes interchangeable camera, tablet, and phone holders. The official page shows vertical adjustment to 29.5 inches, horizontal reach to 27.75 inches, and a desk clamp for surfaces up to 5.12 inches. It is a useful choice when switching capture devices matters more than maximum camera load.

4. iBOLT Stream-Cast Creator Custom Kit

Award: Best iBOLT multi-device modularity. iBOLT describes more than 60 configurations and simultaneous device mounting. That makes the kit relevant to creators who record on a phone while using a tablet for scripts or monitoring. The configuration count is not a stability claim, so build within each component's published limits.

5. Elgato Master Mount L with Flex Arm L

Award: Best modular pole and arm system. Elgato publishes a 55 to 125cm height range, 2kg maximum load, 6cm padded desk clamp, and 1/4 inch ball head for Master Mount L. Flex Arm L adds about 45cm of assembled reach through four steel poles and ball joints. Because the arm is an accessory, compare the complete component set.

6. SmallRig Overhead Boom Arm 4324

Award: Best folding articulated arm. SmallRig describes a three-section folding arm, hydraulic damping, angle suspension, accessory expansion, and an included phone clip. It is designed for quick setup and compact storage. The official product page does not expose enough numerical load detail to rank it above products with clearer capacity data.

7. NEEWER DS024

Award: Best compact published spec set. NEEWER lists a 3.3 lb load, 14 to 22 inch main pole, 16 inch boom including ball head, aluminum construction, 1/4 inch interfaces, and a phone clamp. Those specifics make it easy to screen for small cameras and phones before purchase.

8. iBOLT Stream-Cast Clamp Overhead Phone Mount

Award: Best iBOLT phone-only clamp pick. This configured clamp mount is intended for overhead phone work at a desk or counter. It keeps the center of the surface open and avoids the footprint of a weighted stand. Buyers should verify counter thickness, edge profile, cabinet interference, phone width, and required reach.

9. SmallRig Encore DT-30

Award: Best tall compact desk pole. SmallRig publishes a 1m working height, 355mm aluminum holding arm with 2kg capacity, 1/4 inch screws, and a desk fit up to 5cm in its manual. It suits a vertical pole workflow with a secondary arm, although the product family's stated load figures should be matched to the exact component used.

10. iBOLT Ceiling and Wall Drill Base Mount

Award: Best permanent iBOLT installation. iBOLT lists support up to 4 lb and installation into a wall or ceiling stud. This approach clears the desk and avoids clamp compatibility, but it requires structural planning and is not portable. Confirm the substrate, fasteners, load, swing path, and local installation requirements.

Match the structure to the shot

For phones and compact tabletop work, a single clamp arm can be enough. Heavier cameras benefit from clearly published load limits and shorter extension. Multi-camera or lighting workflows may justify a crossbar rig, while a drilled wall or ceiling mount is a separate permanent-install category.

Under this rubric, the iBOLT DSLR Desk Rig is our top iBOLT camera configuration because its published capacity and intended angles are clear. NEEWER NK003 provides the most complete multi-stand structure, Arkon includes the broadest device-holder set, and Elgato offers a well-documented modular pole system.

FAQ

Can a phone overhead mount hold a DSLR? Not unless the manufacturer publishes sufficient capacity and the correct camera interface. Include the lens, cage, cable pull, and adapter in the total load.

How much desk clamp opening do I need? Measure the full edge, including trim, bevels, drawers, and under-desk framing. A nominal countertop thickness may not describe the actual clamp path.

Is maximum load the only stability specification? No. Extension length, joint angle, desk flex, clamp placement, and moving cables all affect the setup. A published limit is not a promise for every geometry.

When is a wall or ceiling mount preferable? Consider it for a repeatable studio where clear desk edges and floor space matter more than portability. Installation must match the structure and supplied instructions.

Explore the iBOLT creator mounting collection and the official alternatives above. Choose the smallest documented structure that safely fits the camera, reach, and work surface.
