Garmin GPS Mount Compatibility: Finding the Right Mount for Your Boat, Truck, or Vehicle

Picture this: you've just invested in a high-quality Garmin GPS for your boat or work truck, but when you try to mount it, nothing fits quite right. The mounting holes don't line up, the ball sizes are wrong, or worse, you discover your expensive chartplotter is wobbling loose after the first few hours on choppy water. These compatibility headaches are more common than you'd think, but they're completely avoidable once you understand how Garmin's mounting systems actually work.

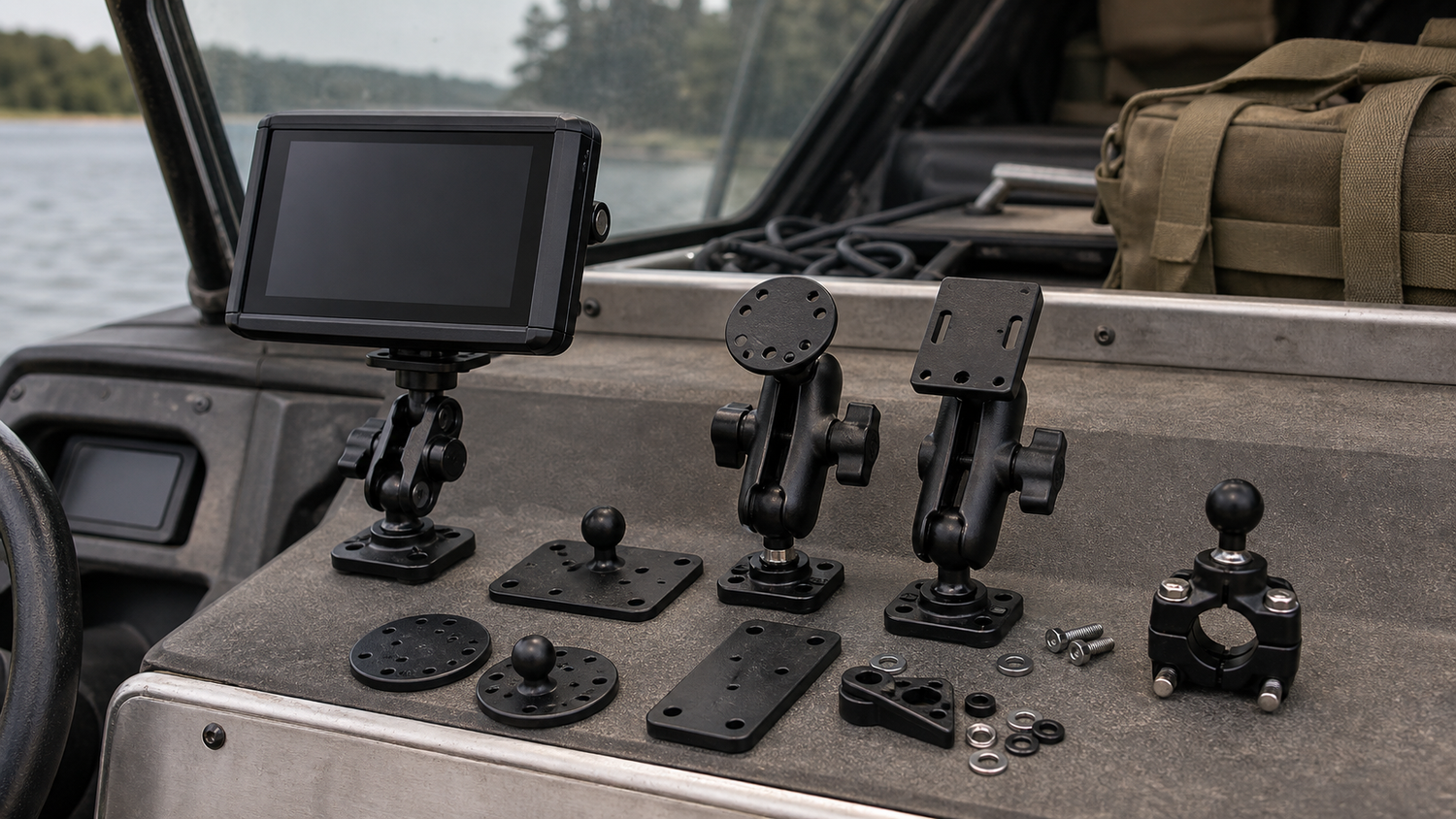

Compatibility hardware helps match GPS devices with AMPS plates and ball-mount arms.

The secret to successful Garmin GPS mounting lies in understanding industry standards. Unlike proprietary systems that lock you into one manufacturer's ecosystem, Garmin devices use universal mounting patterns that open up a world of compatibility options. Whether you're mounting a compact handheld unit or a large chartplotter, knowing these standards helps you choose mounting solutions that work reliably across different environments and applications.

Understanding Garmin GPS Mount Compatibility Standards

Here's the good news: Garmin GPS devices use industry-standard mounting systems based on the AMPS (Amplifier Mounting Plate Standard) pattern. This four-hole rectangular pattern, originally developed for marine electronics, has become the universal standard for GPS mounting across brands. Whether you're mounting a Garmin GPSMAP, echoMAP, or STRIKER series unit, chances are it uses standard AMPS hole spacing.

The key to GPS mounting plate compatibility lies in understanding ball sizes. Most Garmin mounts work with either 25mm (1-inch) or 38mm (1.5-inch) ball and socket systems, both industry-standard sizes that ensure cross-brand compatibility. The 25mm standard works well for smaller GPS units and lighter applications, typically supporting devices up to 2 pounds with proper installation. Meanwhile, 38mm provides the stability needed for larger displays or high-vibration environments like marine use, handling devices up to 10 pounds when properly secured.

When you need to connect your Garmin to a different mounting system, adapter plates bridge the gap. The iBOLT 25mm Metal AMPS Round Adapter Plate (Model IBMAP251) transforms any AMPS-compatible device to work with 25mm ball systems, featuring heavy-gauge aluminum construction and powder coating for corrosion resistance. For heavier-duty applications, the iBOLT 38mm Metal AMPS Round Adapter Plate (Model IBMAP381) handles larger devices that need 38mm ball compatibility, with increased torque specifications rated to 15 ft-lbs.

Understanding these standards means you can mix and match components from different manufacturers, creating the exact mounting setup your application requires without compatibility concerns.

Garmin AMPS Mount Systems: The Foundation of Universal Compatibility

When you're shopping for a Garmin GPS mount, you'll quickly encounter the term "AMPS" – and understanding this standard is key to finding compatible mounting solutions. AMPS (Amp Mount Pattern Specification) refers to the four-hole mounting pattern that Garmin uses on most of their marine GPS units, chartplotters, and fish finders.

The AMPS pattern consists of four mounting holes arranged in a specific rectangular configuration, typically measuring 1.5" x 1.68" on center. This standardized pattern means your Garmin device can work with a wide range of third-party mounts, not just Garmin-branded hardware. The standard also specifies #10-32 threaded holes, ensuring compatibility with industry-standard mounting hardware.

Here's where it gets practical: if your Garmin unit has an AMPS pattern on the back, you can pair it with universal mounting plates like the iBOLT Universal Marine & Electronics Mounting Plate (Model IBUMEP). This powder-coated steel plate features the standard AMPS hole pattern and connects to industry-standard ball mount systems. With a weight rating of 15 pounds and marine-grade finish, it provides reliable performance across different environments.

The beauty of AMPS compatibility extends beyond just the mounting plate. Once you have an AMPS-compatible device mounted to a universal plate, you can connect it to any 25mm or 38mm ball mount system, opening up options for everything from handlebar clamps to drill-base pedestals. This standardization means you're not locked into one manufacturer's ecosystem when building your mounting setup.

Ball Mount Sizes: 25mm vs 38mm Compatibility for Garmin Devices

Getting the right ball size for your Garmin mount makes all the difference between a secure installation and a frustrating compatibility mismatch. Most mounting systems use either 25mm (1-inch) or 38mm (1.5-inch) ball standards, and knowing which size your Garmin device requires helps you choose the right mounting components from the start.

Garmin's smaller handheld units like the eTrex series and many marine chartplotters typically use 25mm ball mounts. These compact devices work well with the lighter-duty mounting arms that 25mm systems provide, with typical weight ratings up to 3 pounds. On the other hand, larger Garmin units, including most GPSMAP series chartplotters and many truck-specific GPS units, are designed for 38mm ball mounts to handle their increased size and weight, supporting devices up to 10 pounds.

The key difference goes beyond just ball diameter. 38mm systems deliver greater holding strength and stability through increased surface contact area and higher torque specifications. While 25mm connections typically handle 8-10 ft-lbs of torque, 38mm systems can withstand 15-20 ft-lbs, which matters when you're mounting heavier devices or operating in high-vibration environments like work trucks or offshore boats.

For universal compatibility, the iBOLT 25mm Metal AMPS Round Adapter Plate (Model IBMAP251) works with any 1-inch mounting arm, while the iBOLT 38mm Metal AMPS Round Adapter Plate (Model IBMAP381) handles larger devices that need 1.5-inch ball compatibility. Both feature aluminum construction with rubber-coated balls for optimal grip and vibration dampening, backed by iBOLT's 2-year warranty and ships within 24 business hours.

Check your Garmin device's mounting pattern and weight specs to determine which ball size provides the right foundation for your specific installation.

Garmin GPS Mount for Boat Applications: Marine-Grade Solutions

Your Garmin chartplotter is only as reliable as the mount holding it in place when you're battling three-foot swells or dealing with the constant vibration from your outboard motor. Marine environments demand mounts that can handle saltwater spray, UV exposure, and the relentless motion that comes with life on the water. Standard steel hardware can fail within months in saltwater conditions, while UV exposure degrades plastic components that weren't designed for marine use.

Most Garmin marine GPS units like the GPSMAP series and echoMAP models use standard AMPS hole patterns, but the marine environment requires specialized mounting solutions that go beyond basic compatibility. Saltwater corrosion can destroy standard steel mounts in a single season, while constant sun exposure degrades cheaper plastic components.

The iBOLT 38mm Ball Composite Universal Marine Fish Finder Mounting Plate (Model IBMFP381) addresses these challenges with marine-grade composite construction that resists both corrosion and UV degradation. The 38mm ball size provides compatibility with larger mounting arms needed for heavier chartplotters, while the composite material maintains its strength in saltwater conditions with weight ratings up to 8 pounds.

For smaller Garmin units or when space is limited, the iBOLT 25mm Ball Composite Universal Marine Fish Finder Mounting Plate (Model IBMFP251) offers the same marine-grade protection in a more compact format, supporting devices up to 5 pounds. Both plates feature the industry-standard AMPS pattern that matches your Garmin's mounting holes and include stainless steel hardware for maximum corrosion resistance.

When it comes to securing your mount to the boat itself, the iBOLT Universal Marine Fish Finder Handlebar/Rail Mount (Model IBMFRM) provides a clamp-based solution that works with railings, T-tops, or any round or square tubing up to 1.75 inches. This eliminates the need for drilling holes in your boat while providing the secure connection your expensive electronics demand, with a clamping force rated to 150 ft-lbs.

Garmin GPS Mount for Truck and Commercial Vehicle Use

When you're managing a commercial fleet or spending long hours on the road, your Garmin GPS needs to stay put through every pothole, vibration, and sudden stop. Truck dashboards present unique mounting challenges: limited flat surfaces, constant vibration from diesel engines, and the need for adjustability when different drivers use the same vehicle.

Commercial drivers often deal with cramped cab spaces where every inch of dashboard real estate matters. Your Garmin mount needs to position the screen for easy viewing without blocking gauges or creating blind spots. The constant vibration from heavy-duty engines, especially diesels that can generate vibrations up to 50Hz, can loosen consumer-grade mounts over time, leading to GPS units that slip or fall at the worst possible moments.

For permanent installations in fleet vehicles, drill-base solutions offer the most secure foundation. The iBOLT sPro2 AMPS drill base mounting solution (Model IBSP2ADB) provides a rock-solid anchor point that can handle the punishment of commercial use, with a weight rating of 12 pounds and vibration resistance tested to military specifications. Its AMPS compatibility means you can swap between different devices as your fleet needs change, while the powder-coated steel construction ensures longevity in demanding commercial applications.

For temporary setups or vehicles where drilling isn't an option, heavy-duty clamp systems work well on console edges or dashboard trim. The TabDock Bizmount heavy-duty tablet clamp mount (Model IBBZ-33910) secures to surfaces up to 2.5 inches wide with 200 pounds of clamping force, accommodating the varied console designs found in different truck models while providing the stability commercial applications demand.

These commercial-grade solutions include iBOLT's standard 2-year warranty and ship within 24 business hours, minimizing fleet downtime when you need replacements or additional units.

Cross-Brand Compatibility: Using iBOLT Mounts with Garmin Devices

Here's something that surprises a lot of people: you don't have to stick with Garmin's original mounting hardware to get a solid, reliable setup for your GPS device. iBOLT's industry-standard approach means our mounts work effectively with Garmin devices while offering enhanced durability and mounting options that Garmin simply doesn't manufacture.

The key is understanding industry-standard ball sizes and AMPS patterns. Most Garmin GPS units use the AMPS hole pattern, which connects perfectly to 25mm (1-inch) ball mounting systems through our adapter plates. This opens up a world of possibilities beyond what's available directly from Garmin. Need a heavy-duty aluminum mount that can handle marine environments? The iBOLT 25mm Metal AMPS Round Adapter Plate (Model IBMAP251) gives you that industrial-grade construction with a rubber-coated ball for optimal stability, rated to 12 pounds weight capacity.

For larger displays or multi-monitor setups, the iBOLT 38mm to VESA 75 x 75 Ball Adapter (Model IBV7575BA38) connects VESA-compatible devices to our 38mm mounting systems, supporting displays up to 25 pounds. This gives you flexibility that goes way beyond standard GPS mounting, allowing integration with larger navigation displays or multi-screen setups.

This cross-brand compatibility means you can choose mounts based on your specific installation needs, not just what one manufacturer offers. Whether you need a composite diamond plate (Model IBCDP251) for weight savings or marine-grade aluminum for harsh conditions, you've got options that maintain industry-standard compatibility.

All iBOLT mounting solutions feature our modular approach with 300+ parts in industry-standard sizes, ensuring you can build exactly the mounting configuration your application demands while maintaining compatibility with existing hardware.

Installation Tips and Compatibility Troubleshooting

Even with the right mount selected, proper installation makes all the difference in GPS mounting plate compatibility. Start by verifying your device's exact model number and mounting pattern before drilling or clamping anything permanently. Many compatibility issues stem from assuming similar-looking devices use identical mounting specs. Check the device manual or manufacturer specifications to confirm AMPS pattern dimensions and weight ratings.

For marine installations, check that all metal components have proper corrosion resistance. Powder-coated aluminum and marine-grade materials handle saltwater environments better than basic steel hardware. When drilling mounting holes, use a pilot hole first to prevent cracking, especially in fiberglass surfaces. Apply marine sealant around mounting holes to prevent water intrusion that could damage electronics or create corrosion points.

Ball size compatibility often causes the most troubleshooting headaches. Industry-standard sizes include 17mm, 20mm, 25mm (B-size), and 38mm (C-size). If your existing arm doesn't match your new device plate, adapter plates bridge the gap without replacing entire mounting systems. Always check weight ratings when using adapters – the weakest component determines your system's overall capacity.

During mount installation, hand-tighten connections initially, then gradually increase tension to manufacturer specifications. Over-tightening can strip threads or crack mounting plates, especially with aluminum components. Test the full range of motion before final tightening to ensure your GPS positioning meets your viewing needs without interference from other dashboard components.

Regular maintenance includes checking connection points for corrosion and verifying that vibration hasn't loosened hardware over time. In marine environments, rinse mounting hardware with fresh water after saltwater exposure and apply corrosion inhibitor to threaded connections annually.

Product Options

Frequently Asked Questions

Q: Will iBOLT mounts work with my Garmin chartplotter?

A: Yes, if your Garmin device has the standard AMPS mounting pattern (four holes in a rectangular configuration), it will work perfectly with iBOLT AMPS adapter plates and ball mount systems. Most Garmin marine GPS units and chartplotters use this industry-standard pattern.

Q: What's the difference between 25mm and 38mm ball mounts for Garmin GPS devices?

A: 25mm (1-inch) balls work well for smaller, lighter GPS units up to 3 pounds, while 38mm (1.5-inch) balls provide greater stability for larger displays or high-vibration environments, supporting devices up to 10 pounds. The larger ball size also offers higher torque specifications for more secure connections.

Q: Can I use the same mount for different Garmin GPS models?

A: As long as both devices use the same mounting pattern (typically AMPS) and are compatible with the same ball size, you can swap devices on the same mount. This makes fleet management and device upgrades much easier while maximizing your mounting investment.

Q: Do I need special mounting hardware for marine use with Garmin GPS?

A: Yes, marine environments require corrosion-resistant materials. iBOLT's marine-grade composite mounting plates resist saltwater corrosion and UV damage much better than standard steel or plastic mounts, with specialized materials designed for constant saltwater exposure.

Q: What should I do if my Garmin GPS mount holes don't match my existing mounting arm?

A: Use an adapter plate to bridge the compatibility gap. iBOLT offers both 25mm and 38mm AMPS adapter plates that connect standard AMPS devices to different ball mount systems without replacing your entire mounting setup. Always verify weight ratings when using adapters.

Q: How do I know if my truck dashboard can support a Garmin GPS mount?

A: For permanent installations, you'll need access to solid backing material behind the dashboard capable of supporting the combined weight and vibration loads. For temporary setups, heavy-duty clamp mounts work well on console edges or trim pieces up to 2.5 inches wide without requiring any drilling.

The key to successful Garmin GPS mounting is understanding that industry standards give you far more options than sticking with one manufacturer's ecosystem. With the right adapter plates and mounting hardware, you can create a setup that perfectly matches your specific installation requirements, whether that's a saltwater-resistant marine mount or a vibration-resistant commercial vehicle solution. All iBOLT mounting solutions come with our 2-year warranty and ship within 24 business hours.

Explore our selection of AMPS adapter plates and mounting solutions to find the perfect compatibility match for your Garmin GPS setup.
