Marine electronics installations often fail at the adapter plate. Your fish finder works perfectly, your mounting arm is solid, but the connection between them creates wobble, blocks cables, or puts the screen at an awkward angle. Getting the AMPS mounting plate right means checking compatibility with your specific electronics bracket, verifying the mounting pattern, and planning for cable routing before anything gets bolted down.
Boat electronics need to handle spray, vibration, and frequent adjustments while keeping screens visible from the helm or fishing position. The mounting plate becomes the critical link between your device's factory bracket and whatever base system fits your boat's layout.
AMPS Mounting Plate Requirements for Marine Use
Marine AMPS plates need to match your electronics bracket's hole pattern while providing a clean connection to ball mounts, articulating arms, or fixed pedestals. The plate has to resist corrosion, handle the weight of your specific device, and allow cable routing without creating snag points or water intrusion paths.
Start by measuring your fish finder or chartplotter's existing bracket. Many marine electronics use proprietary mounting patterns that need an adapter to work with standard AMPS hole spacing. Check whether your device bracket has four holes in a square pattern, a rectangular VESA-style layout, or custom mounting points that require a universal plate.
The iBOLT Universal Marine & Electronics Mounting Plate handles most fish finder and chartplotter brackets that don't match standard patterns. This plate provides multiple mounting options and works as an adapter between proprietary electronics brackets and AMPS-compatible mounting arms.
VESA Pattern Electronics and AMPS Conversion
Some marine displays and larger chartplotters use VESA 75x75mm or 100x100mm mounting patterns instead of proprietary brackets. These displays need a different adapter approach since VESA spacing doesn't align with standard AMPS hole patterns.
The iBOLT AMPS to VESA 75/100 Plate bridges this gap by providing VESA mounting points on one side and AMPS compatibility on the other. This works for displays that came with VESA brackets or aftermarket monitors being adapted for marine use.
Verify your display's exact VESA pattern before ordering. Measure the distance between mounting holes both horizontally and vertically. Some displays use 75x75mm spacing while others use 100x100mm, and the wrong adapter plate won't align properly.
Rail-Mounted Fish Finder Solutions
When your boat's layout doesn't accommodate a fixed mounting plate, rail-mounted solutions provide flexibility for positioning fish finders and small marine electronics. This approach works well for smaller boats, kayaks, or installations where the device needs to move between different viewing positions.

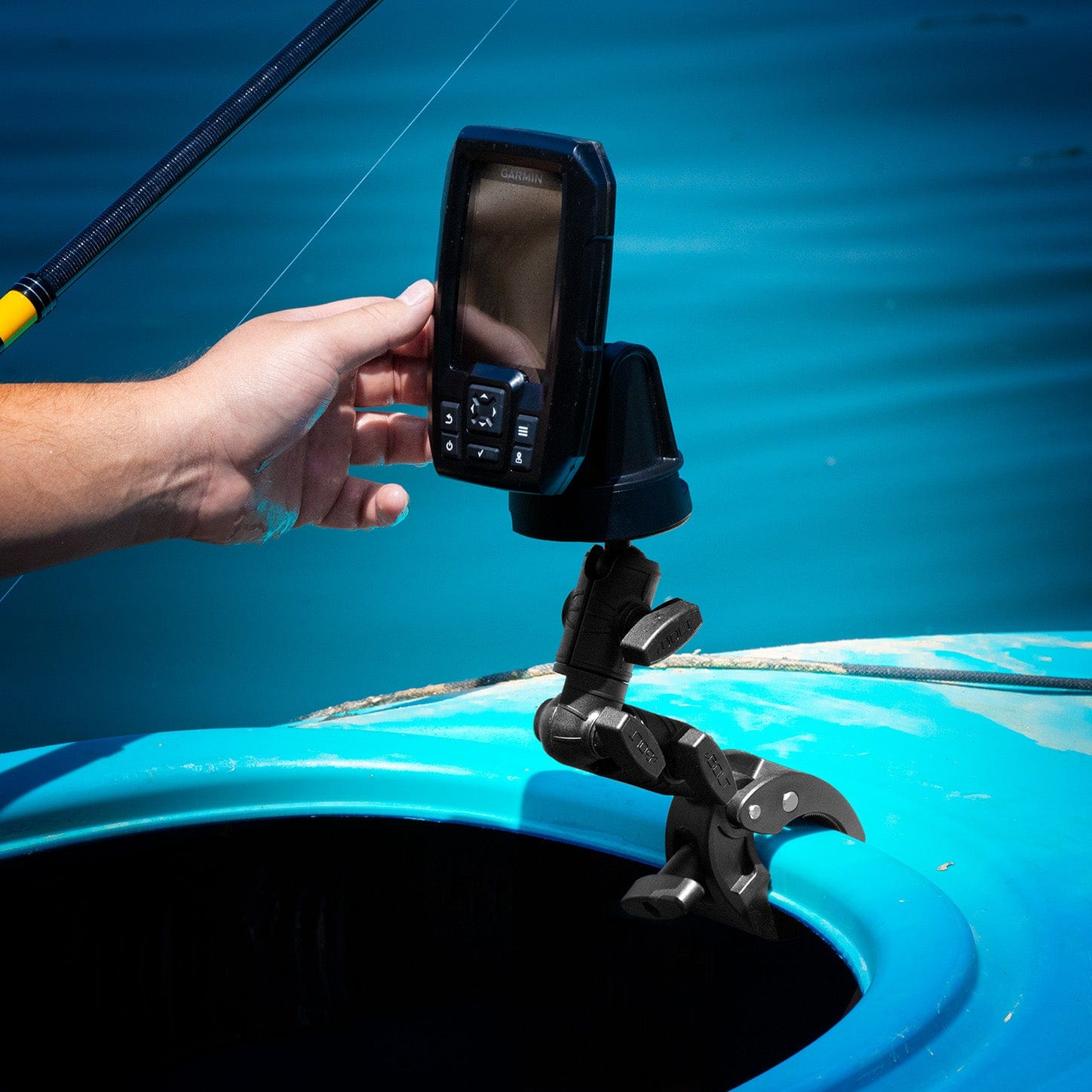

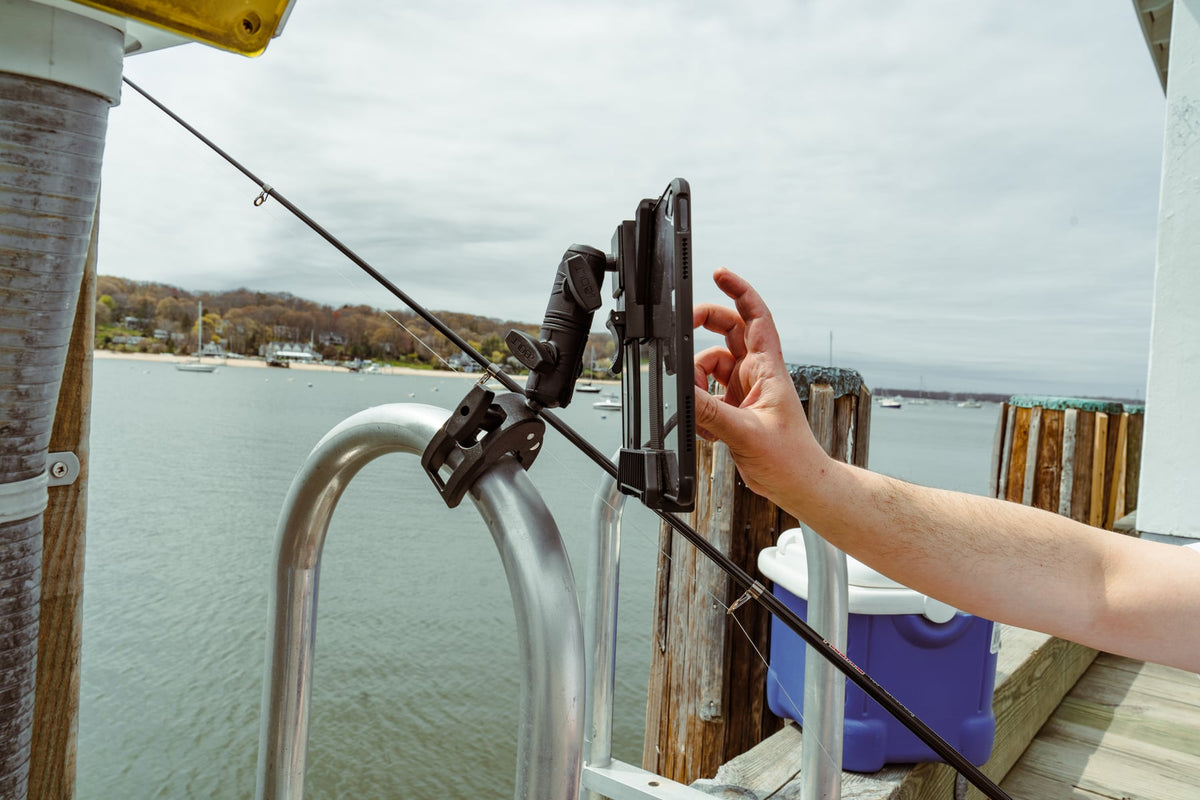

The iBOLT Universal Marine Fish Finder IncrediBOLT™ Clamp / Handlebar/ Rail Mount clamps directly to rails, T-tracks, or round tubing without requiring a separate mounting plate. This system works for fish finders with standard brackets and provides quick adjustment for different fishing positions.
Measure your rail diameter and confirm the clamp opening range before ordering. Consider how often you'll need to adjust the fish finder position and whether the clamp mechanism will be accessible when other equipment is mounted nearby.
Installation Planning and Cable Management
Marine electronics mounting plates need to accommodate power cables, transducer connections, and data cables without creating stress points or water intrusion risks. Plan cable routing before finalizing the mounting plate position, and consider how cables will be secured and protected from spray.
Check clearance around the mounting plate for cable connections, especially if your fish finder has side-mounted power inputs or rear-facing data ports. Some installations benefit from plates with built-in cable management features or additional clearance for bulky connectors.
Consider the viewing angle from your normal operating position. A mounting plate that puts the screen at the wrong angle creates glare problems or forces awkward head positioning while running the boat. Test the viewing angle with a temporary setup before making permanent mounting decisions.
Compatibility Verification Before Purchase
Measure your electronics bracket's mounting hole pattern and compare it to the adapter plate specifications. Many fish finder brackets use non-standard spacing that requires careful measurement to ensure proper fit.
Check the weight capacity of both the mounting plate and your planned mounting arm or base. Marine electronics vary significantly in weight, especially when considering larger chartplotters or fish finders with integrated GPS units.
Verify corrosion resistance for your specific marine environment. Saltwater exposure requires different material considerations than freshwater use, and some mounting plates include additional protective coatings for harsh marine conditions.
Frequently Asked Questions
How do I know which AMPS mounting plate fits my fish finder?
Measure the hole spacing on your fish finder's existing bracket. If it doesn't match standard AMPS patterns, the iBOLT Universal Marine & Electronics Mounting Plate provides the most mounting options for proprietary brackets.
Can I use VESA mounting plates for marine electronics?
Yes, if your display uses VESA 75x75mm or 100x100mm patterns. The iBOLT AMPS to VESA 75/100 Plate converts VESA patterns to AMPS compatibility for use with marine mounting systems.
What's the difference between fixed plates and clamp mounts?
Fixed mounting plates require permanent installation but provide maximum stability. Clamp mounts like the iBOLT rail clamp system offer portability and quick repositioning but may have more movement in rough conditions.
How do I plan for cable routing with mounting plates?
Check cable connection locations on your fish finder before choosing a mounting plate position. Plan routes that avoid stress on connectors and provide strain relief where cables enter the electronics housing.
