Measuring iPad 10th Gen and iPad Air M2 for iBOLT TabDock Holders

Fleet managers, restaurant owners and warehouse leads often ask whether the iPad they already own, in the case they already use, will sit securely in an iBOLT holder. The answer depends on measurements, not screen size.

TL;DR: iBOLT TabDock holders list a 4 to 8 inch opening and TabDockXL holders list 4 to 10.5 inches, both with a 0.75 inch maximum device-plus-case depth. Against bare dimensions, the TabDock opening covers only the short edge of an 11 inch class iPad, while the TabDockXL opening covers either edge of those models and the short edge of a 13 inch iPad Air.

Which iPad models can a TabDock or TabDockXL holder grip?

Against bare dimensions, the listed TabDock opening covers the short edge of the iPad 10th generation, iPad Air M2 11 inch and iPad Pro 11 inch (M4), and the TabDockXL opening covers either edge. Only the TabDockXL opening covers the short edge of the iPad Air M2 13 inch. Add your case to every figure below.

• iPad 10th generation, 248.6 x 179.5 x 7.0 mm, about 9.79 by 7.07 in bare.
• iPad Air M2 11 inch, 247.6 x 178.5 x 6.1 mm, about 9.75 by 7.03 in bare.
• iPad Pro 11 inch M4, 249.7 x 177.5 x 5.3 mm, about 9.83 by 6.99 in bare.
• iPad Air M2 13 inch, 280.6 x 214.9 x 6.1 mm, about 11.05 by 8.46 in bare. The long edge is wider than both openings.

Use these four checks before ordering.

1. Put the iPad in the case you will actually use.
2. Measure across the edge the grip arms will close on and compare it with the holder opening.
3. Keep the cased depth at or under 0.75 inches. A TabDockXL widens the opening, not the depth limit.
4. Check that grip points clear buttons, ports, the camera and any folio cover.

Why does iPad holder fit matter for commercial deployments?

Holder fit matters because one measurement decision repeats at every register, vehicle and kiosk. Restaurants using iPad-based POS apps such as Square or Shopify POS mount iPads at the register, and an adjustable holder can be reused after a refresh when the new cased tablet still measures inside the listed opening and depth.

Which iBOLT mounts suit an iPad in vehicles, restaurants and warehouses?

Suction mounts suit vehicles, locking drill-base stands suit unattended POS counters, and magnetic or locking mounts suit warehouse equipment. Choose the holder variant by your cased iPad measurements, and confirm limits with iBOLT for any kit that does not list them.

Vehicle and Fleet Mounting

The iBOLT TabDock IncrediBOLT 360 Suction Mount ($74.95) is a 6 inch metal multi-angle suction mount for windshields, dashboards or other flat surfaces. The buttons below add the TabDock variant, SKU IBBZ-34990. For a 13 inch iPad Air or a long-edge grip, choose the TabDockXL variant, SKU IBBZ-34990-XL ($79.95), on the same product page.

Apple lists the iPad 10th generation at about 477g, far heavier than a phone, so tighten the adjustment points firmly and recheck the suction cup regularly.

Heavy-Duty Vehicle Mounting

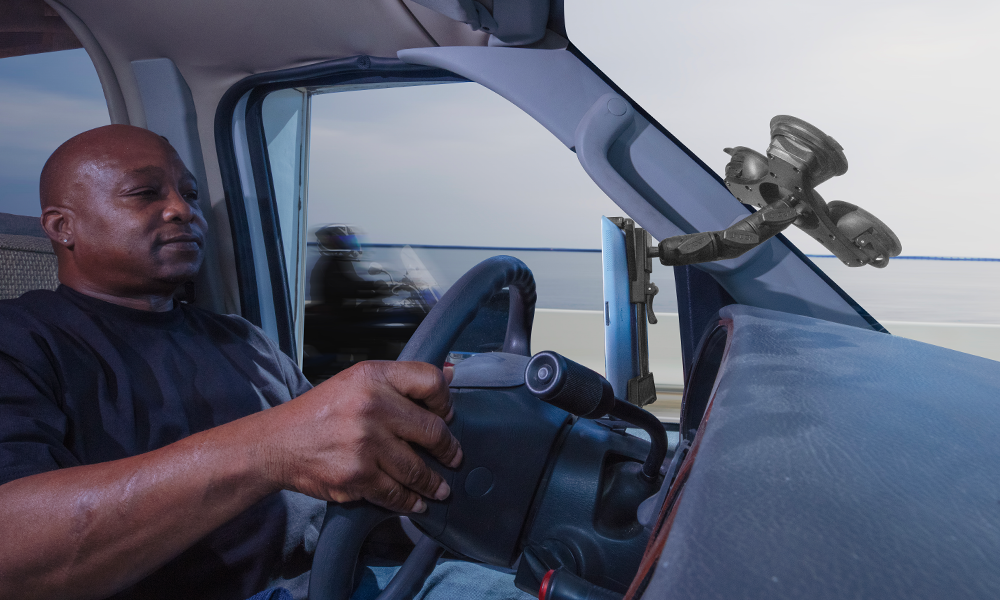

For tablets in moving commercial vehicles, the iBOLT TabDock IncrediBOLT 360 Triple Suction Mount ($89.95) uses three suction cups for windshield or flat-surface mounting. The buttons below add the TabDock variant, SKU IBDY-34352, and the TabDockXL variant, SKU IBDY-34352-XL ($94.95), is on the same product page.

Restaurant POS

For iPad-based POS apps such as Square or Shopify POS, iBOLT TabDock Tablet Tower kits come in TabDock and TabDockXL variants, and the LockPro Drill Base POS Mount, SKU IBRT-34717, uses a locking holder. Confirm the exact holder limits for either kit with iBOLT, then compare them with your cased iPad's width, height and depth.

Warehouse and Industrial

For receiving and inventory work, TabDock MagDock magnetic kits list the same TabDock and TabDockXL openings, while Dock'n Lock locking mounts use a holder with separate width and height limits. Confirm the holder, ball size and limits for the exact forklift or cart kit with iBOLT before ordering.

Should you choose a universal TabDock or a device-specific cradle?

Choose a device-specific cradle for the closest fit on one model. Choose an adjustable TabDock or TabDockXL holder if you expect to change tablets, as long as each new tablet and case measure inside the listed opening and depth.

A molded cradle may stop fitting when a new model changes dimensions slightly. Screen size alone does not predict edge dimensions, so measure each new model before redeploying an adjustable holder.

Which ball and adapter sizes does iBOLT offer?

Ball and adapter sizes vary by kit. iBOLT's catalog includes 17mm, 20mm, 22mm, 25mm (1 inch), 38mm (1.5 inch) and 57mm (2.25 inch) parts, and the TabDock Tablet Tower clamp kits (IBRT-34700 and IBRT-34707) include a 20mm to 4-prong adapter. Confirm the connection for your exact kit with iBOLT before mixing parts or brands.

Frequently Asked Questions

Q: Does a 13 inch iPad Air fit a standard TabDock?

A: No. Its bare short edge is about 8.46 inches, wider than the 4 to 8 inch TabDock opening. The TabDockXL opening covers that edge if the cased measurement stays within 10.5 inches.

Q: Does a TabDockXL hold a thicker case than a TabDock?

A: Not in depth. Both holders list the same 0.75 inch maximum device-plus-case depth.

Q: Which edge of my iPad should the holder grip?

A: Grip the edge whose cased measurement falls inside the opening. On 11 inch class iPads the TabDock opening covers the short edge, and the TabDockXL opening covers either edge when the case leaves room.

Q: Has iBOLT fit-tested these iPad models?

A: This guide compares listed holder openings with published iPad dimensions. It is not a physical fit test, so measure your iPad with its case before ordering.

Where can you order TabDock and TabDockXL kits?

Compare TabDock and TabDockXL options for your setup at iboltmounts.com. For any kit without listed holder limits, or for enterprise and volume orders, contact iBOLT before ordering.
