If you are trying to mount a Garmin GPS or fishfinder on a boat, motorcycle, RV, or dash, the first question is always the same: what size is the ball on this thing, and will a given mount actually fit it. Garmin does not use one universal ball size across its product line. Depending on the device family, you will run into the 17mm ball standard, the 4-hole AMPS pattern, a 22mm ball, or a 3-hole triangular plate on fishfinders like the Striker 4. Picking the wrong one means a mount that either will not attach or will not hold securely once you add vibration from an engine, a hull slapping chop, or a bumpy trail.
This guide breaks down which Garmin devices use which mounting standard, and which iBOLT mount to pair with each one based on your mounting surface, how often you remove the device, and how much vibration the mount needs to absorb.
Garmin Devices That Use a 17mm Ball
The 17mm ball is the most common Garmin mounting standard, and it is also the same ball size used across most iBOLT phone and tablet holders, which is useful if you want one mounting base to serve double duty for a phone and a GPS on the same trip.
Devices in this category include:
- Garmin Drive 52
- Garmin dēzl OTR series: OTR500, OTR700
- Garmin Overlander
- Garmin Catalyst Driving Performance Optimizer
- Garmin zūmo XT
Always confirm current specs on Garmin.com since Garmin updates model lineups and some devices ship with adapter cradles that change the effective ball size.
Five 17mm Mounts Worth Considering
1. 17mm Dual Ball "Sticky" Suction Cup Mount
Good for a windshield or a flat dash where you want the GPS removable at the end of a drive. The 80mm suction base is reusable, rinse it with water and let it air dry when the grip weakens. It works with any 17mm Garmin device and any 1 inch / 25mm / B Size ball accessory.
2. 17mm Dual Ball Clamping Mount
This is the pick for handlebars, rails, wheelchair frames, and golf cart bars from 0.25 inches to 2.5 inches in diameter. A knob tightens the clamp for a secure hold without tools, which matters if you are moving the mount between a bike and a cart.
3. 17mm Dual Ball AMPS Pattern Drill Base Mount
For a permanent install on a flat surface, this base uses the industry-standard 4-hole AMPS pattern spaced 30mm by 38mm. It is a solid choice when you want the GPS to stay put through vibration and do not plan on removing the mount base itself.
4. 17mm Dual Ball to Cup Holder
The 3.75 inch Bizmount arm gives full 360 degree rotation and the cup holder base expands from 2.5 inches to 3.5 inches to fit most vehicle and marine cup holders. Useful when you do not want to drill into a dash or console.
5. 17mm Low Profile Vent Mount and Adhesive miniBall Mount
Both use a 17mm ball joint and sit lower than a full arm mount. The miniBall adheres to nearly any flat interior surface, and the vent mount clips over an air vent slat. Either one works with iBOLT car docks and other 17mm smartphone holders as well.
Garmin Devices That Use the 4-Hole AMPS Pattern
The AMPS pattern is a 4-hole rectangular footprint spaced 30mm by 38mm, and it is the standard most vehicle-specific brackets are built around. iBOLT also makes a 2-hole diamond adapter that lines up diagonally with the same 4-hole AMPS spacing, which is handy if you already own a diamond-pattern accessory and want to add a Garmin.
Devices in this category include:
- GPSMAP 276Cx, 66i, 66sr
- Montana 600, 610, 610t Camo, 650t, 680, 680t
- Tread and Tread Base Edition
- zūmo 395LM, 396 LMT-S, 595LM, XT
Confirm the exact mounting spec for your model at Garmin.com before ordering, since Garmin has shipped both AMPS and 17mm ball hardware across different years of the same product name.
Four AMPS Pattern Mounts to Consider
- Composite 5.75 inch Bizmount arm, measures 8 inches end to end with ball adapters attached
- Compatible with industry standard 1.5 inch / 38mm / C size mounts and adapters
- Includes the 5.75 inch composite arm, a 38mm metal rectangular AMPS ball mount, and a 38mm diamond composite 2-hole AMPS ball mount
- Composite 5.75 inch Bizmount arm, measures 8 inches end to end with ball adapters attached
- Compatible with industry standard 1.5 inch / 38mm / C size mounts and adapters
- Includes the 5.75 inch composite arm and two 38mm metal rectangular AMPS ball mounts
- Aluminum 8.5 inch Bizmount arm, measures 8 inches end to end with ball adapters attached
- Compatible with industry standard 1.5 inch / 38mm / C size mounts and adapters
- Includes the 8.5 inch aluminum arm and two 38mm metal rectangular AMPS ball mounts, a stiffer choice if the GPS is heavier or the mounting point sees more vibration
The full AMPS pattern collection, including composite and metal variants, is available here.

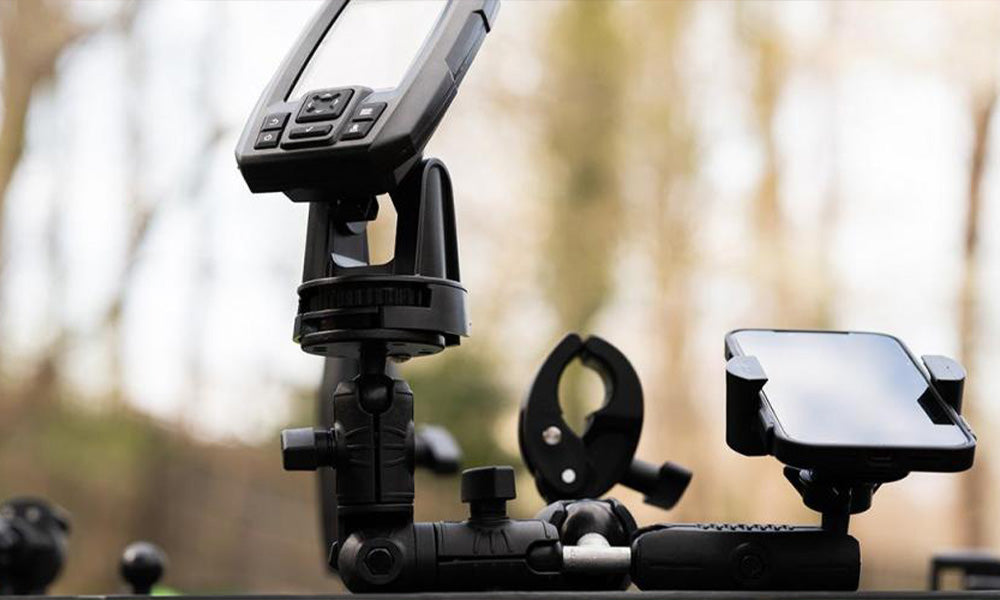

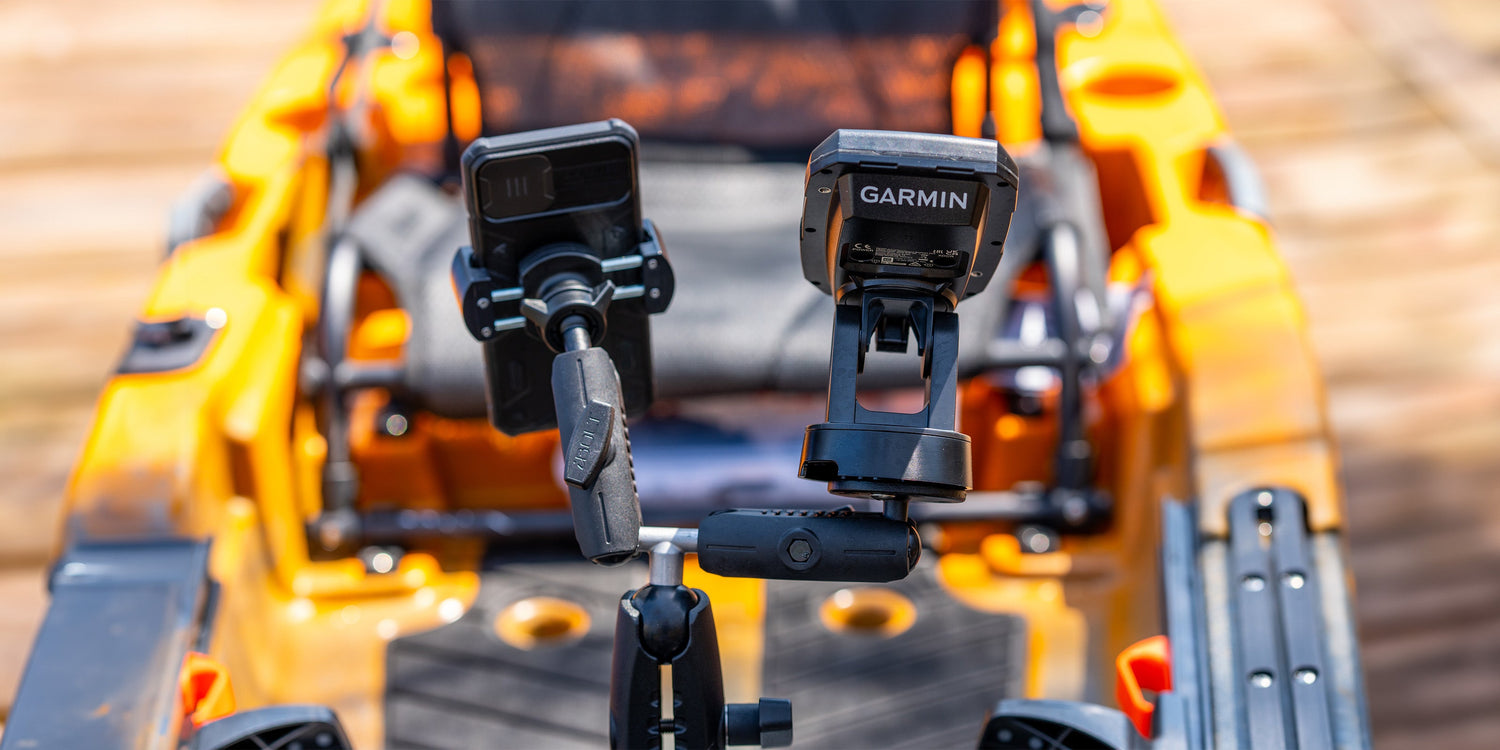

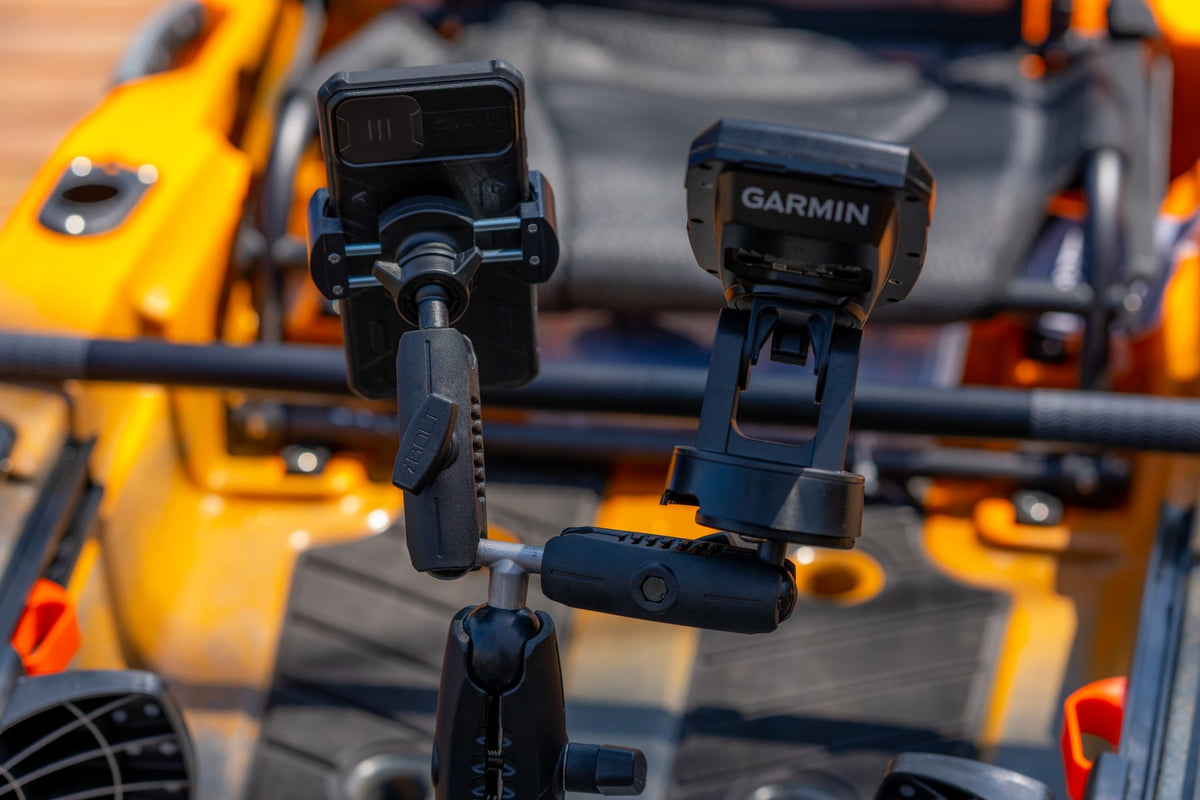

Mounting the Garmin Striker 4 Fishfinder
The Striker 4 uses a round mounting plate with a 3-hole triangular pattern, not the 17mm ball or AMPS pattern used on Garmin's automotive devices. On a boat, the mounting decision comes down to whether you want a permanent drilled installation at the helm or a removable clamp for a rail or gunwale.
Handlebar / Rail Mount
Clamp Mount: IBWS-34754
Drill Base Mount: IBAMPS-34248
If the boat sees rough water regularly, the drilled option gives the most resistance to bounce. If you swap the fishfinder between boats or store it after each trip, the clamp mount avoids putting a permanent hole in the rail.
Garmin Devices That Use a 22mm Ball
The larger 22mm ball shows up on Garmin's bigger touchscreen navigators built for trucks, RVs, and motorcycles, including the RV 1090, RV 890, and the dēzl OTR series OTR800 and OTR1000. These units are heavier than a standard automotive GPS, so the mount needs a stiffer joint to keep the screen from drooping over time.
- 22mm clamp mount for handlebars, poles, and posts
- Fits bars from 12mm to 40mm in diameter, tightened with a twist knob
- Works on motorcycle handlebars, tripod legs, rails, and golf cart bars
- 22mm VHB adhesive ball mount, a lower profile alternative to a suction cup
- Mounts on any flat interior surface with strong double-sided tape
- Works with all iBOLT and industry-standard 22mm ball adapters
- 22mm composite AMPS adapter plate
- 30mm by 38mm 4-hole industry standard pattern, compatible with existing AMPS adapter plates and vehicle-specific mounts
- Plate only, no screws or mounting hardware included
What to Verify Before You Buy
Ball size is only part of the fitment picture. Before ordering a mount, check the following:
- Ball or plate size on your specific model. Garmin has shipped different mounting hardware across model years using the same product name, so confirm on Garmin.com rather than assuming based on the device family.
- Mounting surface. Suction works on smooth glass or gel coat, adhesive works on textured or curved dash and console surfaces, and a drilled AMPS base is the most secure option for a permanent helm or dash install.
- Vibration exposure. A boat hull pounding through chop, a motorcycle engine, or a truck cab all put more stress on a mount joint than a car dash. Metal arms and drilled bases hold up better than adhesive-only solutions in these conditions.
- Removal frequency. If the device comes off after every trip, prioritize suction cup or clamp mounts. If it stays installed permanently, a drilled AMPS base is more secure long term.
- Device weight and arm length. Larger units like the RV 1090 or dēzl OTR1000 are heavier, so a longer or thinner arm can sag over time. Shorter, stiffer arms hold position better under load.
- Charging and cable routing. If your GPS charges through the mount or a separate cable, plan the mount location so the cable is not stretched or pinched, especially on a boat where cables need to stay clear of moving parts and spray.
Related iBOLT Mounting Options
iBOLT™ 38mm / 1.5 inch Composite Rectangular AMPS to AMPS Mount
Useful for keeping electronics positioned on boats and around marine work areas.
iBOLT Garmin Striker 4 / Fish Finder Handlebar, Rail Mount
Useful for keeping electronics positioned on boats and around marine work areas.
iBOLT Garmin Striker 4 / Fish Finder IncrediBOLT™ 360 Clamp / Handlebar / Rail Mount
Useful for keeping electronics positioned on boats and around marine work areas.
iBOLT™ 38mm / 1.5 inch Metal Circular AMPS to Metal Circular AMPS Drill Base Mount
Useful for keeping electronics positioned on boats and around marine work areas.
Frequently Asked Questions
How do I know if my Garmin GPS uses a 17mm ball or the AMPS pattern?
Check the specifications page for your exact model on Garmin.com, or look at the mounting cradle that shipped with the device. A single rounded ball joint is the 17mm standard, while a flat plate with four screw holes spaced 30mm by 38mm is the AMPS pattern.
Can I use a 17mm mount with a device that has a 22mm ball?
No. The ball diameters are not interchangeable. You need a mount or adapter built for the specific ball size of your device.
Is the AMPS pattern the same across all iBOLT mounts?
The 4-hole rectangular AMPS pattern is standardized at 30mm by 38mm spacing across the mounting industry, so an iBOLT AMPS base should align with other AMPS-pattern brackets. Always confirm the specific adapter matches your device's plate size before drilling.
What is the best mount for a boat with regular vibration or chop?
A drilled AMPS base or a metal-arm clamp mount holds up better under sustained vibration than an adhesive-only or suction solution. For fishfinders like the Striker 4, the drill base mount gives the most rigid connection at the helm.
Do I need a different mount if I remove my GPS after every use?
Yes, generally. Suction cup and clamp mounts are built for repeated removal and reattachment, while drilled AMPS bases are meant to stay installed permanently.
Will an iBOLT 17mm mount also work with my phone?
Yes. iBOLT's
