iBOLT 7.45 inch Composite Dual Ball Bizmount™ with Metal AMPS Drill Base

iBOLT 7.45 inch Composite Dual Ball Bizmount™ with Metal AMPS Drill Base

Name: iBOLT 7.45 inch Composite Dual Ball Bizmount™ with Metal AMPS Drill Base
Brand: iBOLT Mounts
SKU: IBDY-34346
Price: 48.95 USD
Availability: InStock

$48.95

SKU: IBDY-34346

Description

This Multi-Angle AMPS-compatible drill base mount is perfect for attaching industry-standard AMPS Pattern holders, brackets, and adapters.

Quantity:

iBOLT Mounts iBOLT 7.45 inch Composite Dual Ball Bizmount™ with Metal AMPS Drill Base

$48.95

Specifications

This iBOLT Dual Ball Mount arm is made out of heavy-duty composite material but features 2 metal 25mm AMPS plates to attach any industry standard AMPS pattern device holders, brackets, devices, and more.

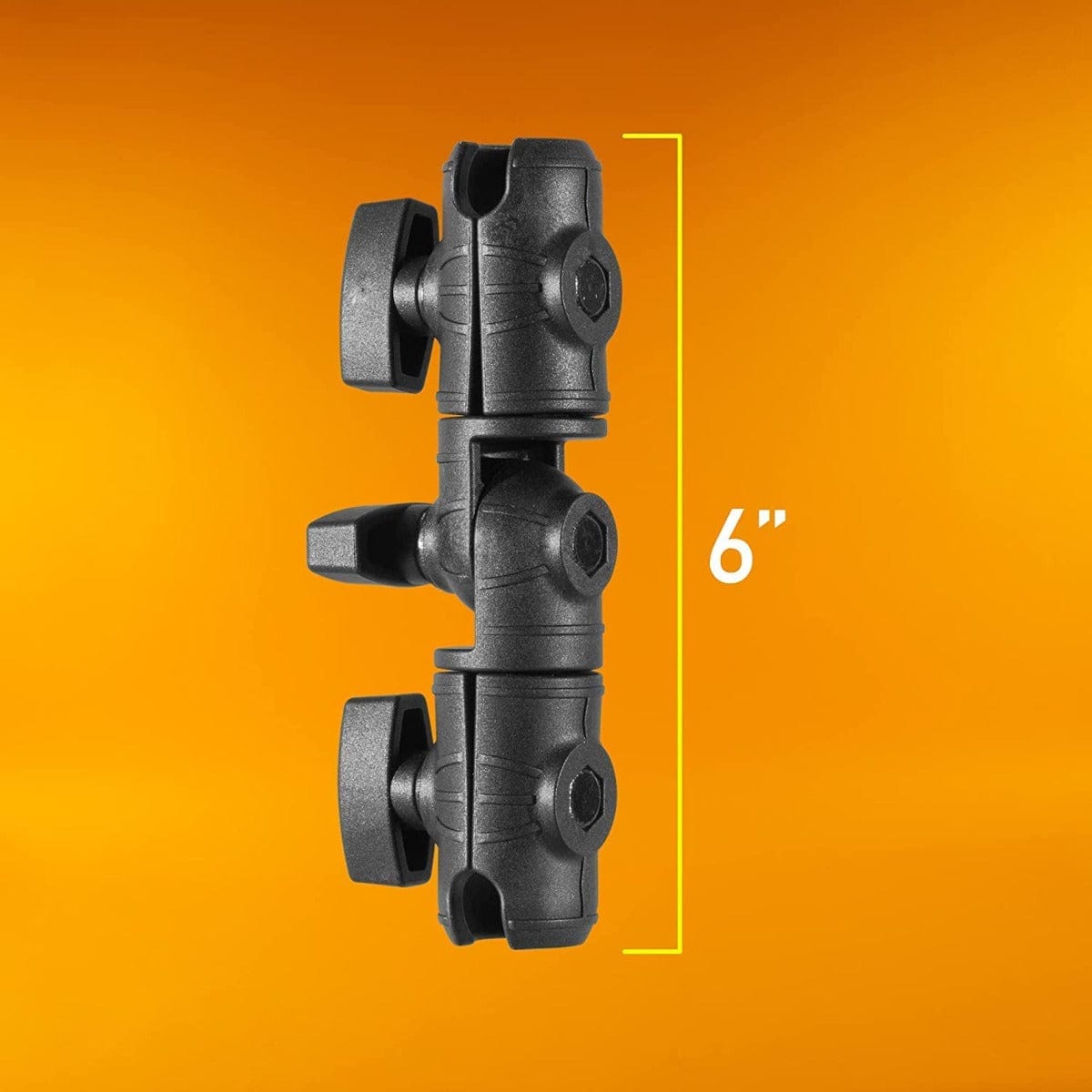

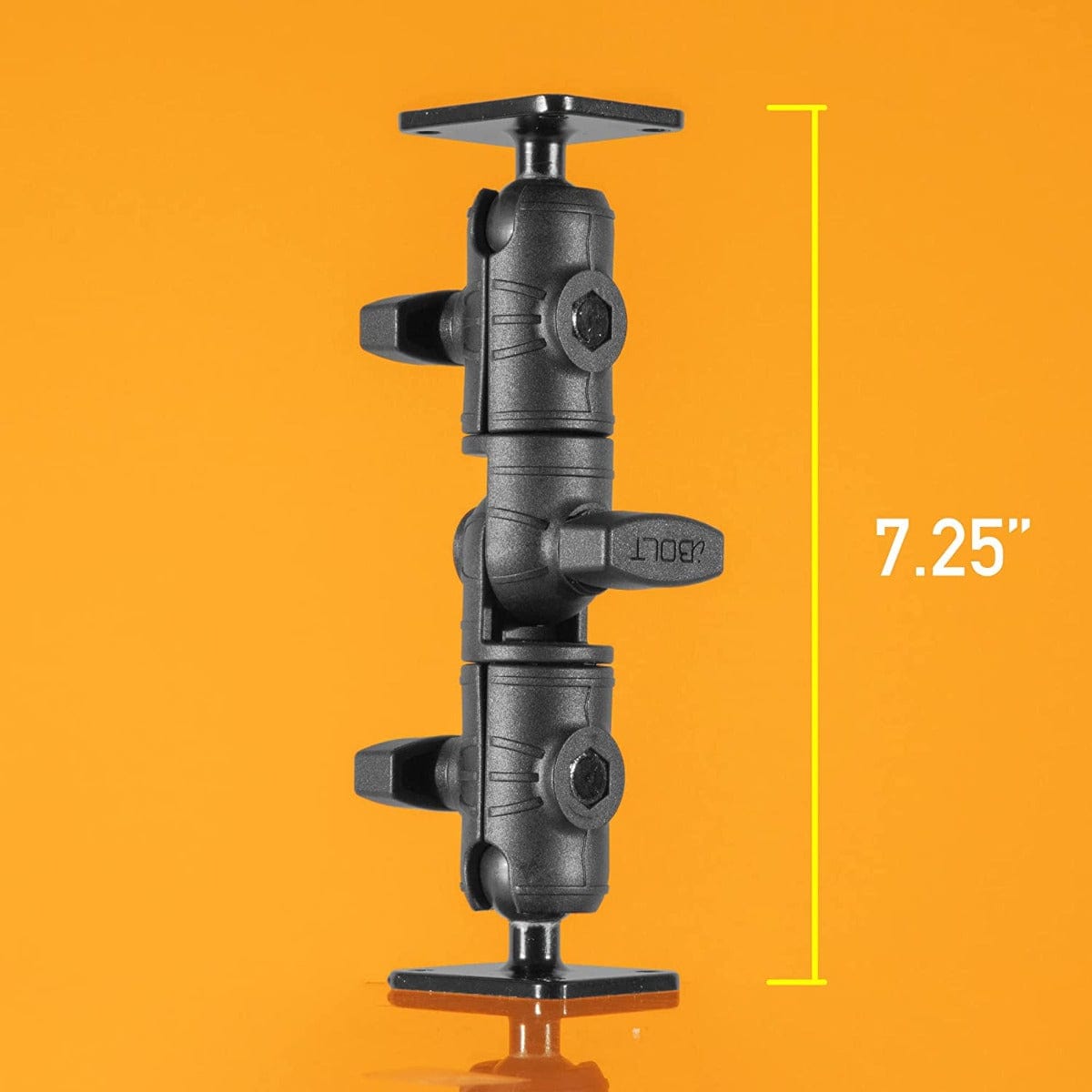

LENGTH: The multi-angle double socket arm with a center hinge joint measures 6 inches end to end and 7.45 inches end to end with the ball adapters attached.

ADJUSTABLE - Rotates 360 degrees for optimal viewing positions. The 2 adjustable points and center hinge with a rotating axis offers freedom to completely adjust the arm to the optimal viewing position.

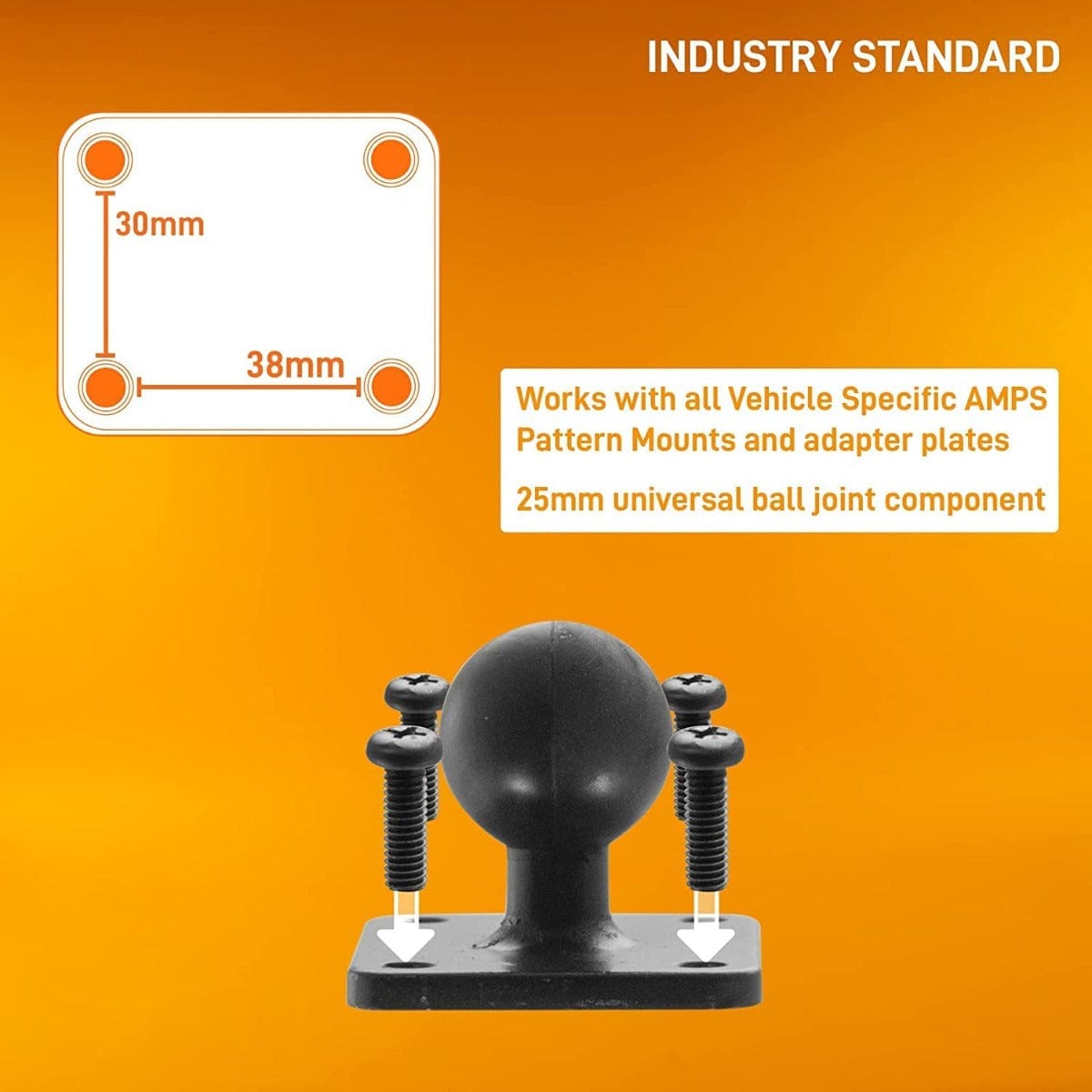

FEATURES: a 30mmx38 mm industry-standard 4-hole pattern (=AMPS) on both sides. The AMPS pattern consists of four holes located in a rectangular pattern spaced at 30.17mm x 38.05mm (measured as the center-to-center distance between holes). Simply drill this mount onto any flat surface for a secure hold.

COMPATIBILITY: Commonly used with IBBZ-33921 or IBBZ-33791 and the iBOLT Bizmount™ series or IncrediBOLT™ Series mounts. Compatible with any other Industry standard 1-inch / 25mm / B Size Ball joints and “Octo”/ Octagon pattern adapters and arms.

INCLUDES: (1) 6-inch Composite Multi-angle dual ball adjustable mount (end to end), and (2) Aluminum Metal AMPS Plates.

Ball Joint Size

25 mm / 1 inch / B Size

Materials

Composite & Metal

Weight

265 g

Arm Length

6 inches

Compatible Devices

25

25 mm / 1 inch / B Size

Amps

AMPS Pattern Holders/Brackets
