Work Truck Phone Mounts: Fit, Kits and Installation

The phone is in its protective case, the radio already occupies part of the dash, and another driver will use the truck tomorrow. A work truck phone mount has to fit that cab as well as the device. Start with the attachment point and daily handling, then choose the holder.

Three useful decisions narrow the field: whether the phone needs keyed retention, whether a fixed AMPS connection is appropriate, and whether a removable base fits the cab. The iBOLT options below show what each arrangement includes and which measurements to check before ordering.

Choose a mount around the way the phone is used

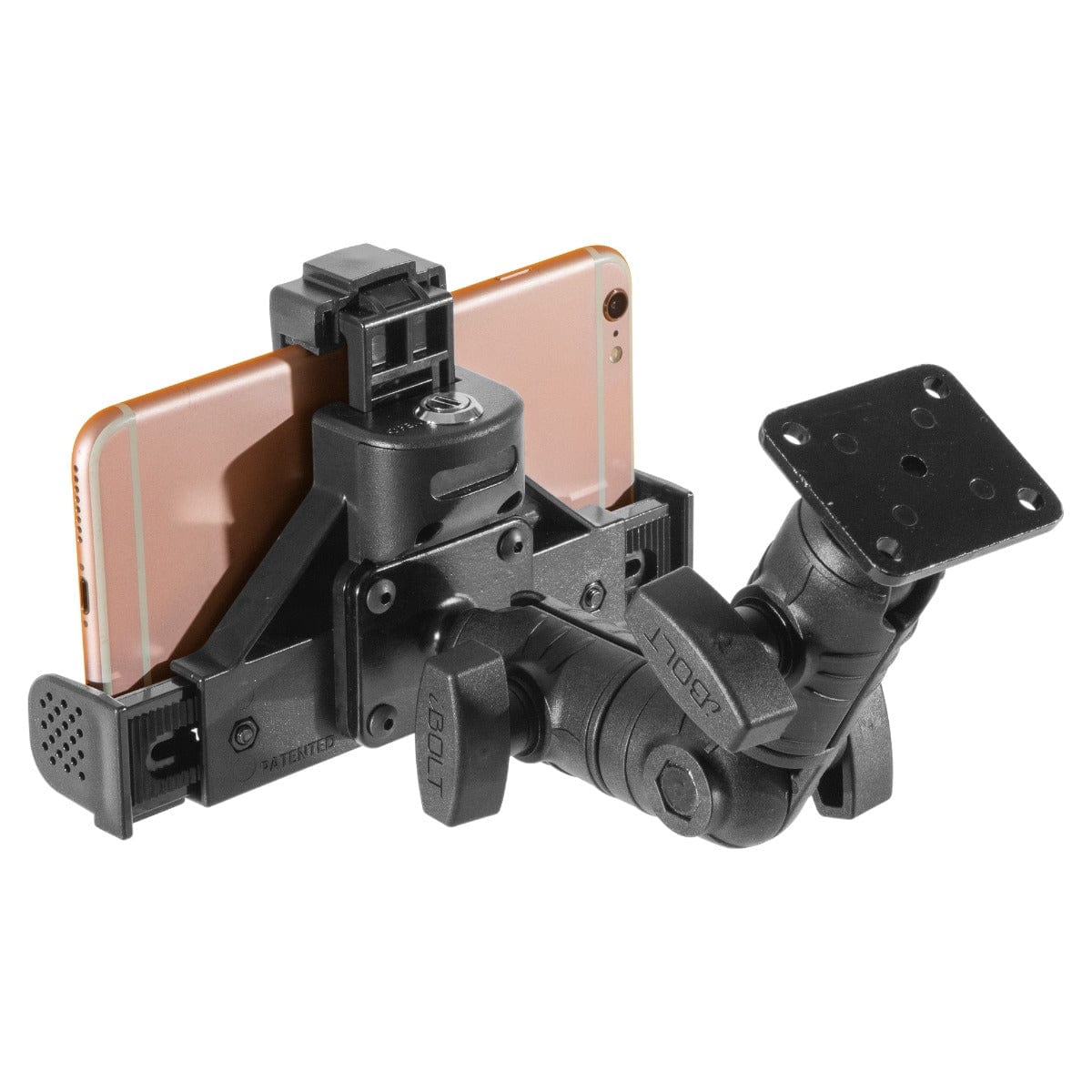

Start with Phone Dock’n Lock IncrediBOLT 360 for keyed retention, or Moto-Vise XL AMPS for a spring-loaded holder at a suitable fixed mounting point. The keyed option uses an adjustable arm with 25mm joints. Moto-Vise XL uses a different 17mm interface and does not list a key lock.

A cup-holder base offers another approach when a removable arrangement suits the cab. The xProDock Bizmount Console was unavailable when checked on September 8, so check stock before planning a purchase. Its fit and charging details also need attention, particularly when using a current phone and case.

Check the case, connection and complete parts list

Measure the phone in its everyday case, including any accessory that will stay attached. For Phone Dock’n Lock, compare the published width and height with your device. For Moto-Vise XL, compare width and depth. In both cases, check the side buttons, release mechanism and charging port in the intended orientation.

Reach matters in a crowded cab. The Phone Dock’n Lock page gives different arm lengths in its description and specification field, so confirm the assembled reach before choosing a base position near controls. Start with the phone's intended position, then work back to the attachment point.

The Moto-Vise XL listing gives AMPS hole spacing of 30.17 by 38.05mm, measured center to center. Compare that pattern with the mating bracket. The holder, plate, screws and adhesive are listed in the kit; a vehicle-specific bracket is not. Match the ball interfaces too, because a 17mm part and a 25mm part need an appropriate adapter to work together.

For xProDock Console, check usable cup-holder diameter, depth and surrounding space. The base is listed for diameters of 2.5 to 3.5 inches. Its phone-width figures differ: 2.59 to 3.7 inches in the description and 2.6 to 3.6 inches in the holder field. Confirm the exact device fit, especially near either limit.

Keep charging on the parts list. The console kit includes a microUSB cable; that does not establish USB-C compatibility or supply a power adapter. The other two kits do not list a charger. Choose the cable and power source for the phone you will actually use.

Plan the installation with the vehicle parked

Review the proposed position from the normal driving seat while the truck is parked and secured. Keep the phone and arm clear of sightlines, controls, airbags, restraint movement and access. Follow the vehicle manufacturer's mounting guidance and involve the fleet installer when an attachment point needs approval.

For a fixed base, check the supporting material, fasteners and what is behind the attachment point before drilling. A flat trim panel is not automatically a suitable mounting surface. If the installation needs a vehicle-specific bracket, add the exact bracket and hardware to the order.

For a removable base, check usable space for the whole assembly rather than just its base diameter. The arm and phone still need to sit where they can be read without interfering with normal vehicle operation. Make any positioning adjustments while stationary.

Run the charging cable so the intended holder adjustment does not strain the connector. Keep loose cable away from pedals, the gear selector and other controls, and leave access to disconnect it for service. Recheck the mount according to its instructions and the fleet's maintenance process.

Match device handling to the daily workflow

A phone that stays in a shared truck through a shift change may benefit from a key-controlled holder. A phone that comes out at each stop needs an insertion and removal method that works for its user. Try the actual case and normal work gloves with the vehicle stationary before ordering the same arrangement for several trucks.

The Moto-Vise XL instructions recommend two hands for insertion and removal. Keep that in mind when comparing it with a workflow built around frequent stops. Keyed retention also needs a simple custody plan so the right person can remove the device when it needs charging elsewhere or service.

Record the chosen SKU, case, attachment hardware, measured clearances and final position. Photos of the base and cable route help the next installer understand the setup. A replacement phone with a larger case, or a different truck model, calls for another fit check.

If the application has a specific load or vibration requirement, request supporting information for the complete configuration. Likewise, an ELD installation involves the device system, placement and operating requirements; selecting a mount alone does not establish compliance.

Frequently asked questions

Explore the fleet mounting collection and compare the selected kit with your cab, device and daily handling needs.

Specifications and listed USD prices checked September 8, 2026. Based on manufacturer-published specifications, not comparative performance testing. Check current availability and your selected variant before ordering.
