Your visual inspection pilot is underway at the assembly bench, and the same component looks different in every frame. One image shows a clean edge. The next has a glare streak across it. A third is slightly rotated because someone bumped the camera during a changeover. Camera mounts for manufacturing rarely get attention until this happens. Before anyone blames the model, compare the input images and check whether the capture setup itself has drifted.
The mount is one physical part of a capture system that also includes the part fixture, lighting, camera settings, and documentation. A mount does not make a model accurate, and it does not supply AI analysis. This guide covers the mechanical decisions that keep that system consistent, with iBOLT examples for the camera side.
Start With the Smallest Detail the Camera Must See
Before comparing any camera mount for visual inspection, name the one feature the check depends on. It might be a clip present at an assembly bench, a crushed corner or skewed label at a conveyor inspection point, or a part seated correctly in its fixture.
That feature must be clearly visible at the intended working distance. The working distance determines the camera, lens, and angle, and those determine the mount. A wider field of view adds context but shrinks the target detail. Capture test frames at your working distance, and compare bright and dark material finishes before committing to a position.

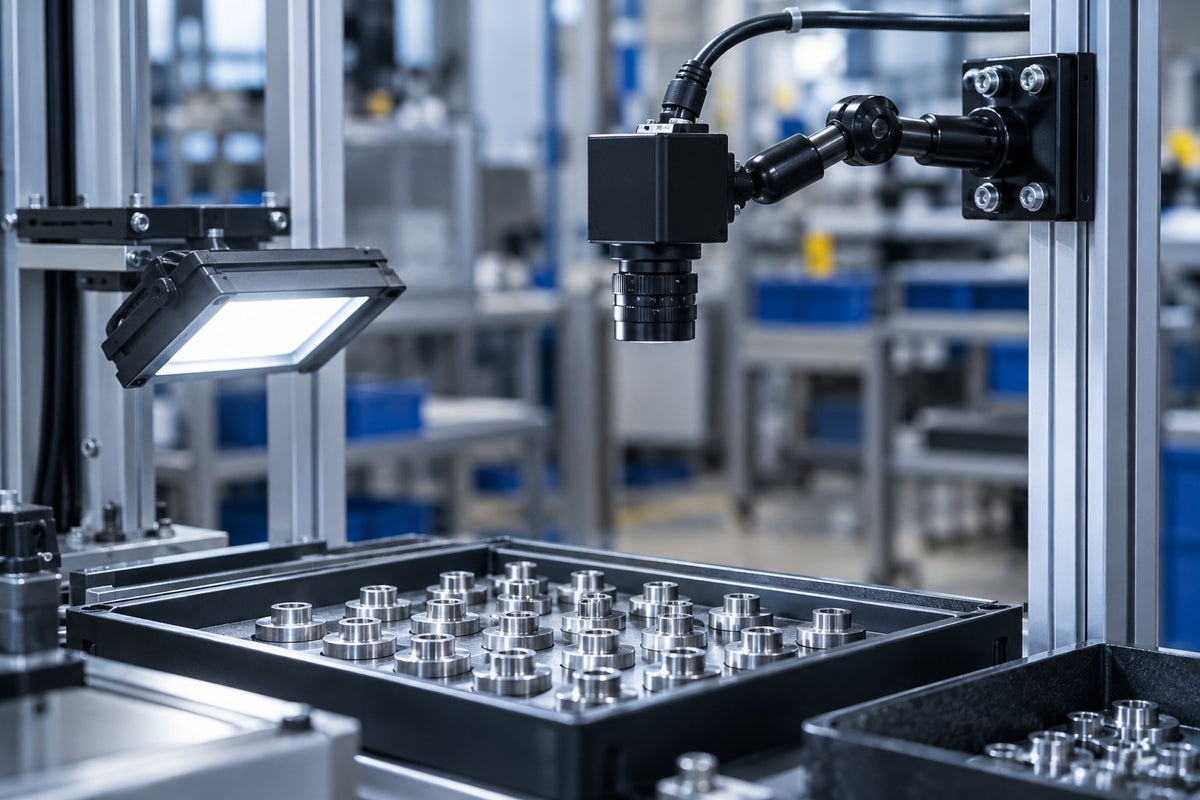

Place the Camera, Light, and Part as One System
The camera, lights, and part form one capture problem, not three separate decisions. Basler's illumination guide explains that lighting angle changes which surface features appear in the image. It also explains that both too little and too much light can wipe out useful detail.
- Lock the part first. Set the part or fixture position, then adjust camera angle and light placement together.
- Watch for shifting glare. Overhead lights, windows, and reflective tooling can add glare at certain times of day, so check the view across shifts.
- Keep the optical path clear. Nothing should block the lens, and the camera and mount shouldn't shadow the target.
- Respect the work envelope. Keep the mount clear of tooling, machine guarding, and maintenance access. The site's engineering team decides which attachment points are acceptable.
Choosing Camera Mounts for Manufacturing Stations
Once the geometry is set, the mount has to hold it. Check the fit in this order.
1. Confirm the camera interface. Many cameras accept a 1/4-20 screw, but not all do. Basler's mounting instructions show that mounting methods vary by camera and screw arrangement. Check your camera's documentation for its interface, adapters, and fasteners. Cameras are not included with these mounts.
2. Match the base and ball size. AMPS is a rectangular four-hole pattern of roughly 30 x 38 mm, so measure the holes on your surface or adapter plate. A 38mm (1.5-inch) C-size ball and a 25mm (1-inch) B-size ball are different systems. A shared AMPS pattern does not make them interchangeable.
3. Compare options.
- iBOLT™ 38mm / 1.5 inch Metal AMPS to ¼ 20” Camera Screw Mount (IBAMPS-34207): A 38mm AMPS camera mount with a metal rectangular AMPS ball base, a 3.5-inch composite Bizmount arm, and a 1/4-20 camera screw adapter. It suits an adjustable view at a fixed station.
- iBOLT™ 38mm / 1.5 inch Metal AMPS to ¼ 20” Composite Camera Screw Mount (IBAMPS-34226): The same C-size system with a 5.75-inch composite arm. The extra reach can help you work around an obstacle or find a better angle.
- iBOLT ¼ 20” Camera Screw IncrediBOLT™ AMPS Single Socket Arm Drill Base Mount (IBDY-34339): A composite single-socket drill-base layout with a 25mm B-size interface, Octo collar, rectangular AMPS plate, and composite 1/4-20 adapter. Consider it where you need a low-profile camera mount near an inspection station, provided actual dimensions and access clearances check out.
Arm length isn't the same as total stand-off, so measure real clearance with the camera attached.
4. Check the complete load. Add up the camera, lens, enclosure, accessories, and cable tension. Confirm the allowable load for the exact setup with iBOLT, including your complete camera package and actual interface. Route cables so they don't tug on the camera or cross the operation.
5. Plan edge computers separately. Use the exact finished enclosure and manufacturer-approved mounting. Account for the full load, and leave room for heat, ports, and service access. The mounts above are examples for the camera side only.
Test Under Real Line Conditions: Vibration vs. Motion Blur
A blurry frame on a running line can come from two different problems. If the camera moves, vibration is the likely culprit. Axis notes that vibration can make video shaky or distorted, which is why a stable mechanical installation matters.
If the part moves during the exposure, that's motion blur. Basler explains that longer exposure times can increase blur on moving objects, and that raising gain to compensate adds noise. A rigid mount won't fix a blurred moving part.
Before recording a full shift:
- Review a short production run at actual line speed with nearby equipment running.
- If the fixture and background also look smeared, suspect camera movement. If only the part blurs, adjust exposure and lighting.
- Verify retention, joint tightness, and cable routing with your site's engineering team.
Document Every Position Change for Repeatable Capture
Once the view passes testing, save an approved reference frame and record the setup details:
- Camera identifier
- Date and station
- Lens and camera settings
- Lighting
- Mount configuration, including the iBOLT SKU and arm used
Log a new setup whenever the view, lens, lighting, fixture, or mount changes. Don't mix changed views into one dataset without a record. After maintenance, compare the live view against the reference frame.
A controlled setup doesn't mean every image looks identical. Useful AI inspection image collection includes known good parts and relevant defects where lawfully and safely available. It also includes representative part, lighting, and operating variation. Following grouped-data guidance, keep related frames together and evaluate on separate runs to limit near-duplicate leakage.
In an AI-assisted review workflow, computer vision can flag events for human auditors to evaluate against additional criteria. That means the view must preserve the detail reviewers need. Before expanding any pilot, define the capture purpose and confirm authorization, access, and retention.
Compare the iBOLT Mounts
Original catalog photographs. Cameras are not included. Select a product for current specifications and pricing.
38mm AMPS camera mount · 3.5-inch arm
38mm AMPS camera mount · 5.75-inch arm
25mm IncrediBOLT AMPS camera mountFrequently Asked Questions
Does a stable mount eliminate motion blur?
No. A rigid mount reduces one source of camera movement, but blur also comes from the part moving during exposure. Exposure time and illumination still need attention.
Do all industrial cameras use a 1/4-20 thread?
No. Mounting interfaces vary by camera and screw arrangement, so check your camera's documentation for any required adapter or fasteners. Cameras are not included with these iBOLT mounts.
Are 38mm ball mounts interchangeable with other ball sizes?
Don't assume 25mm B-size and 38mm C-size parts connect directly. Use the manufacturer's documented compatible parts, and note that a shared AMPS hole pattern does not make balls or sockets interchangeable.
When should the inspection view be rechecked?
Recheck after any change to the camera, mount, fixture, lens, or lighting, and after maintenance or an impact. Follow your site's maintenance plan and compare each check against the saved reference frame.
Conclusion
Choosing camera mounts for manufacturing works best as a sequence:
- Define the smallest detail you need to see.
- Place the camera, light, and part together.
- Confirm the interface and complete load.
- Test on a running line.
- Document every change.
Explore the selection of iBOLT camera mounts, from the adjustable IBAMPS-34207 and longer-reach IBAMPS-34226 to the short single-socket IBDY-34339.
