Mounting problems rarely begin with the device. They begin with the work around it. A restaurant needs four order screens in one sightline. A forklift operator needs a tablet and scanner without a pile of separate brackets. A truck has no useful dashboard location. A boat rail cannot accept the same base as a flat console. A creator needs a phone above the work surface rather than in front of it.
Those jobs call for different bases, arms, holders, and connection standards. That is the reason iBOLT develops mounting hardware as a modular system, with more than 300 active catalog listings that include products, parts and configurators. Instead of asking one generic holder to work everywhere, the system can be configured around the surface, device, reach, and operating environment.
TL;DR: A modular mounting system solves problems that one generic holder cannot, by pairing the right base, arm and holder for each surface and device. Match ball sizes and plate patterns exactly, and measure the device in its case, then confirm the selected holder's limits before ordering.
What Mounting Problems Can a Modular System Solve?
A modular mounting system can solve crowded restaurant counters, combined forklift tablet and scanner stations, vehicles without a usable dashboard spot, marine electronics on rails or custom bases, and overhead phone filming. Each problem starts with a different surface, device or reach requirement, so each calls for its own base, arm and holder.
| Problem | Example iBOLT configuration | Best for |
|---|---|---|
| Too many restaurant tablets | Quad Tablet Tower TabDock Stand (IBRT-34711) | Four tablets in one sightline |
| Forklift tablet plus scanner | TabDock Dual XL Scanner Pillar (IBFL-34544) | One pillar work point for both devices |
| No dashboard location | IncrediBOLT Flexpro Seat Rail Mount (PBM-55033) | A seat rail base with an AMPS plate adapter |
| Marine electronics | Universal Marine and Electronics Mounting Plate (21281) | An AMPS-compatible base or splitter plate for custom setups |
| Overhead camera angle | Stream-Cast IncrediBOLT Stand (IBSC-34680) | A phone above the work surface |
1. Too many restaurant tablets, not enough counter
Delivery platforms, POS software, and kitchen applications can put several tablets at one station. Four individual stands spread across the counter, block preparation space, and make the order queue harder to scan.

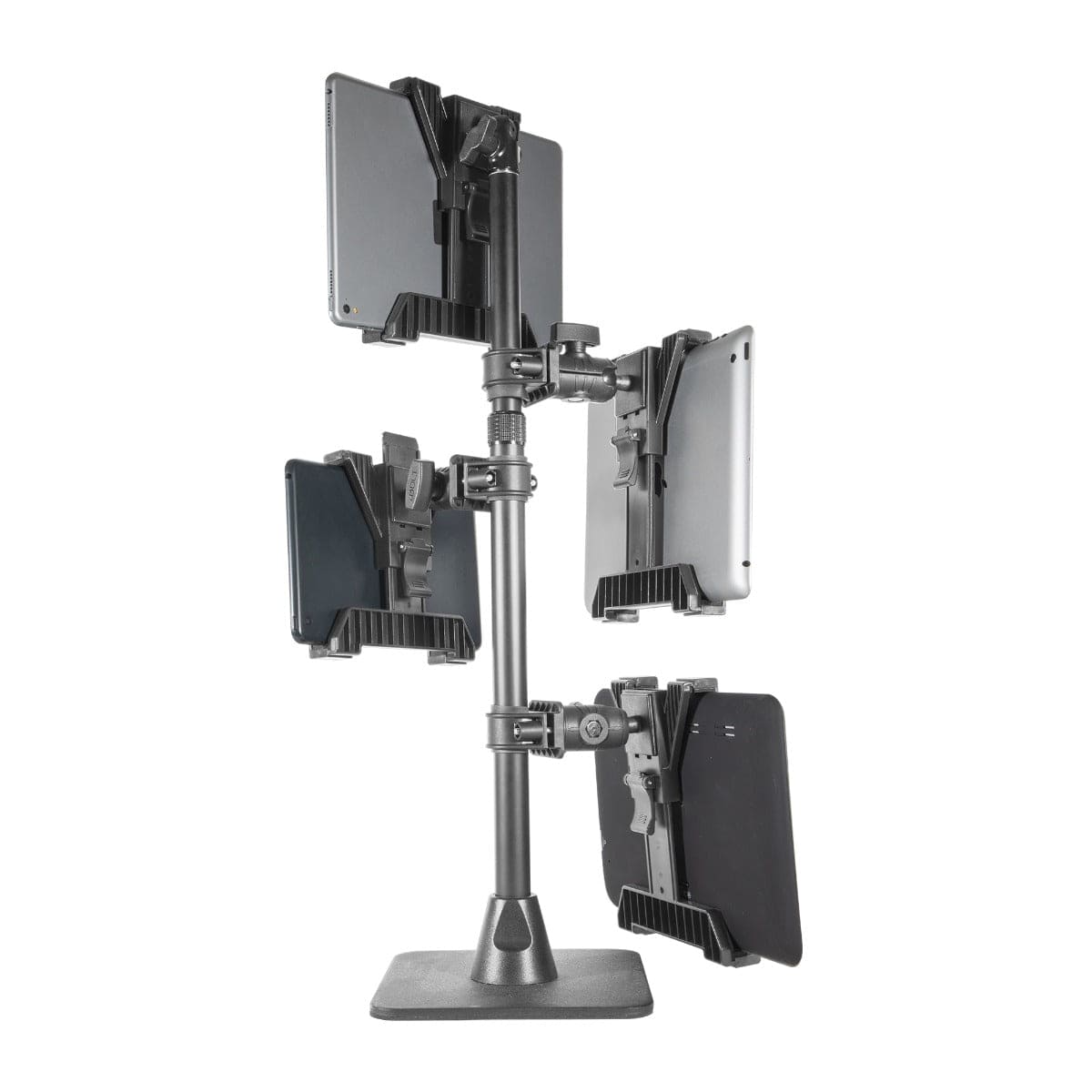

The iBOLT Quad Tablet Tower TabDock Stand holds four tablets in one location. A restaurant can assign each screen a fixed role and keep the group within one sightline. When a free counter edge is available, the TabDock POS Clamp Mount with 4 Tablet Holders (IBRT-34707) includes a clamp for flat surfaces up to 2.5 inches wide and a drill base. The TabDock POS Wall Mount with 4 Tablet Holders (IBRT-34709) moves the station off the counter entirely.
iBOLT Quad Tablet Tower TabDock Stand - $149.95
The useful lesson is not simply "add a stand." It is to treat screen visibility, charging, cleaning, and staff reach as one station-design problem. See how delivery apps changed restaurant counter design for a full layout approach.

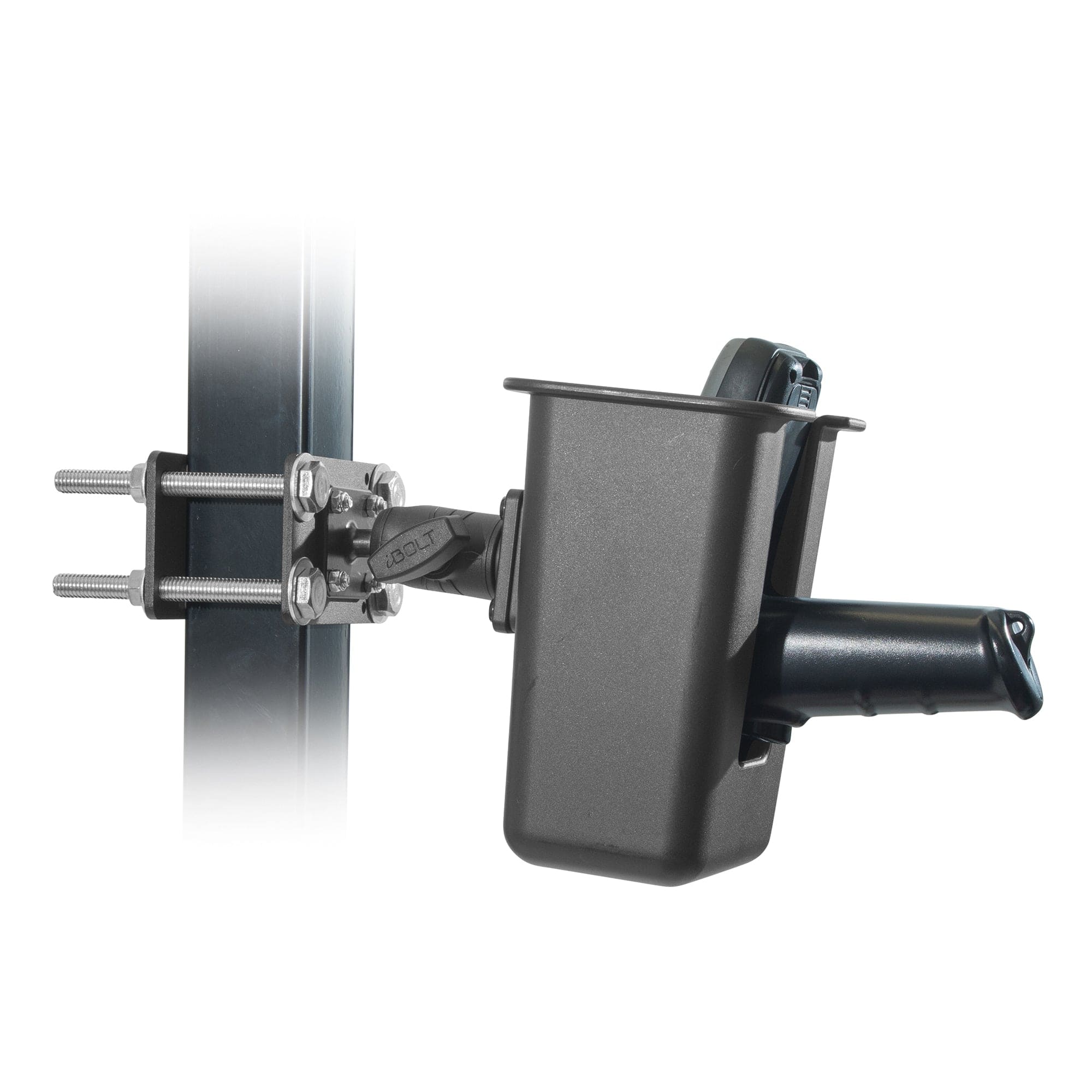

2. A forklift needs both a tablet and barcode scanner
A warehouse tablet may carry WMS tasks, while a handheld scanner handles item and location scans. Mounting them separately can add hardware around the operator area and place one device outside an efficient reach zone.
The iBOLT TabDock Dual XL Barcode Scanner Forklift Pillar Mount (IBFL-34544) keeps a tablet and an industrial barcode scanner within reach at one forklift pillar location, using the TabDock tablet holder. The TabDock XL tablet holder is sold as a separate variant (IBFL-34544_XL), so the Dual XL name alone does not select the tablet holder. Screen size alone does not settle fit. Measure the tablet in its case across the edge the holder grips and through its thickness, then confirm the opening and depth limits for the exact SKU with iBOLT. The two device roles remain distinct, but the mounting plan is coordinated.
iBOLT TabDock Dual XL Barcode Scanner Forklift Pillar Mount - $119.95
Installation still requires a sightline and reach review. The screen, scanner, arm, and cables should not block controls, entry, or normal operation. The guide to choosing a forklift tablet mount covers those checks.
3. A fleet device has no suitable dashboard location
The right screen position is not always on the dashboard. Some vehicles have limited flat space. Others have controls, airbags, or sightlines that rule out an otherwise convenient location.
A modular system separates the vehicle attachment from the device holder. The iBOLT IncrediBOLT Flexpro Seat Rail Mount with AMPS Plate is designed to install on the passenger seat's front left mounting screws. It is listed with a 4.25 inch arm and an AMPS plate adapter and is compatible with 25 mm (1 inch, B size) dual ball arms and adapters. A compatible AMPS holder can then be selected for the job.
iBOLT IncrediBOLT Flexpro Seat Rail Mount with AMPS Plate - $49.95
This does not make every seat rail position appropriate. The installer must check airbag zones, controls, driver entry, cable routing, and device visibility. The modular advantage is having another base style while retaining a documented connection standard.
4. Marine electronics need to fit a rail or custom base
Fish finders and other marine electronics come with different hole layouts. Boats and kayaks also present different surfaces, including rails, flat consoles, and existing drill patterns. A single preassembled mount cannot anticipate every combination.
The iBOLT Universal Marine and Electronics Mounting Plate is a powder-coated steel plate with multiple mounting holes and 4-hole AMPS compatibility. It works as a base or splitter plate for custom setups and pairs with compatible iBOLT mounts or pedestals sold separately.
iBOLT Universal Marine and Electronics Mounting Plate - $12.95
The plate does not determine the complete installation. Device pattern, base location, arm length, clearance, and the forces created by the electronics all need to be considered. The Garmin fish finder mount guide explains how those decisions fit together.
5. A phone camera must point down at the work
Cooking demonstrations, craft videos, product views, and desk tutorials may need a phone above the work surface. A conventional desk stand places the camera in front of the subject, which is the wrong angle for hands-on content.
The iBOLT Stream-Cast IncrediBOLT Stand Adjustable Overhead Phone Mount is an adjustable stand built to give an overhead view of baking, crafting and other hands-on work at a table or workstation.
This use case shows why the mounting job matters more than the device category. It is still a phone mount, but the required angle, reach, and base geometry are completely different from a phone mounted in a delivery van.
How Do You Choose the Right Modular Mount Path?
Choose a modular mount path by starting with the attachment surface. Is it flat, round, magnetic, glass, a seat rail, a wall, or a counter edge? Then identify the device, case dimensions, connection pattern, and needed access to ports. Finally, decide how much reach and adjustment the job requires.
Match every ball size and plate pattern exactly. The current iBOLT catalog includes components with 17mm, 20mm, 22mm, 25mm, 38mm, and 57mm ball interfaces, along with AMPS plates and an AMPS to VESA 75/100 plate. Shared interfaces make reconfiguration possible only when the dimensions actually match.
This is the larger iBOLT story, mounting systems designed around real work with multiple paths from the surface to the screen. Build your own iBOLT mount when a ready-made configuration does not match the job.
Frequently Asked Questions
Q: What is a modular mounting system?
A: It is a mount assembled from functional sections such as a base, arm, adapter, and holder. Compatible sections can be selected or changed according to the attachment surface and device.
Q: Are all modular mount parts interchangeable?
A: No. Parts must match by ball diameter, socket range, hole pattern, fastener requirements, intended device, and operating conditions. Always verify the product specifications.
Q: What is an AMPS plate?
A: An AMPS plate uses a standard mounting hole pattern common in mobile and vehicle hardware. It can connect compatible bases, adapters, cradles, and device holders.
Q: Can one system mount two different devices?
A: Yes, when the configuration is designed with branches or multiple holders and the base and arms are appropriate for the combined setup. The forklift tablet and scanner mount is one example.
Q: How do I start a custom mounting setup?
A: Begin with the surface, then identify the required reach, connection size, and holder dimensions. Use the iBOLT Mount Configurator or contact support when the connection between two components is unclear.
