10 Warehouse Barcode Scanner Mounts Compared by Fit

A scanner holder can look like a minor forklift accessory until an operator has nowhere consistent to return a handheld. The useful comparison is not simply which product is called heavy duty. It is whether the holder fits the deployed scanner, whether the base fits the vehicle, and whether the listed item is a complete mount or only one component.

This guide compares ten current products from iBOLT, RAM Mounts, Arkon, ProClip, Gamber-Johnson, Havis, and Zebra. It is deliberately narrower than our earlier warehouse workflow coverage: this page compares published hardware and fit, while Forklift Scanner Mounts for Daily Workflows covers process design.

Key Verdict

Best overall for a configured forklift pillar setup: iBOLT XL Forklift Pillar Mount. In this specification-based comparison, it pairs an open XL scanner holder with a forklift pillar bracket in one listing, so the buyer starts with both holder and vehicle attachment rather than an AMPS holder that still needs an arm and base. Choose the Zebra FLB3678-C100F3WW instead when a fleet is standardized on the supported cordless DS3678 and needs its published sealed powered cradle with charging and Bluetooth.

Disclosure: iBOLT publishes this guide and manufactures four listed products. No product was physically tested for this article. Manufacturer specifications were reviewed on August 5, 2026. Unknown details remain unknown. Prices are omitted because several options require separate arms, bases, device cradles, or quote-based configurations.

Methodology and comparison table

We weighted holder and scanner fit at 25 percent, vehicle attachment fit at 20 percent, retention design at 15 percent, adjustability at 10 percent, published materials at 10 percent, completeness of the listed configuration at 10 percent, and modularity at 10 percent. An award identifies a specific strength under this rubric, not universal superiority.

The ten specification-based picks

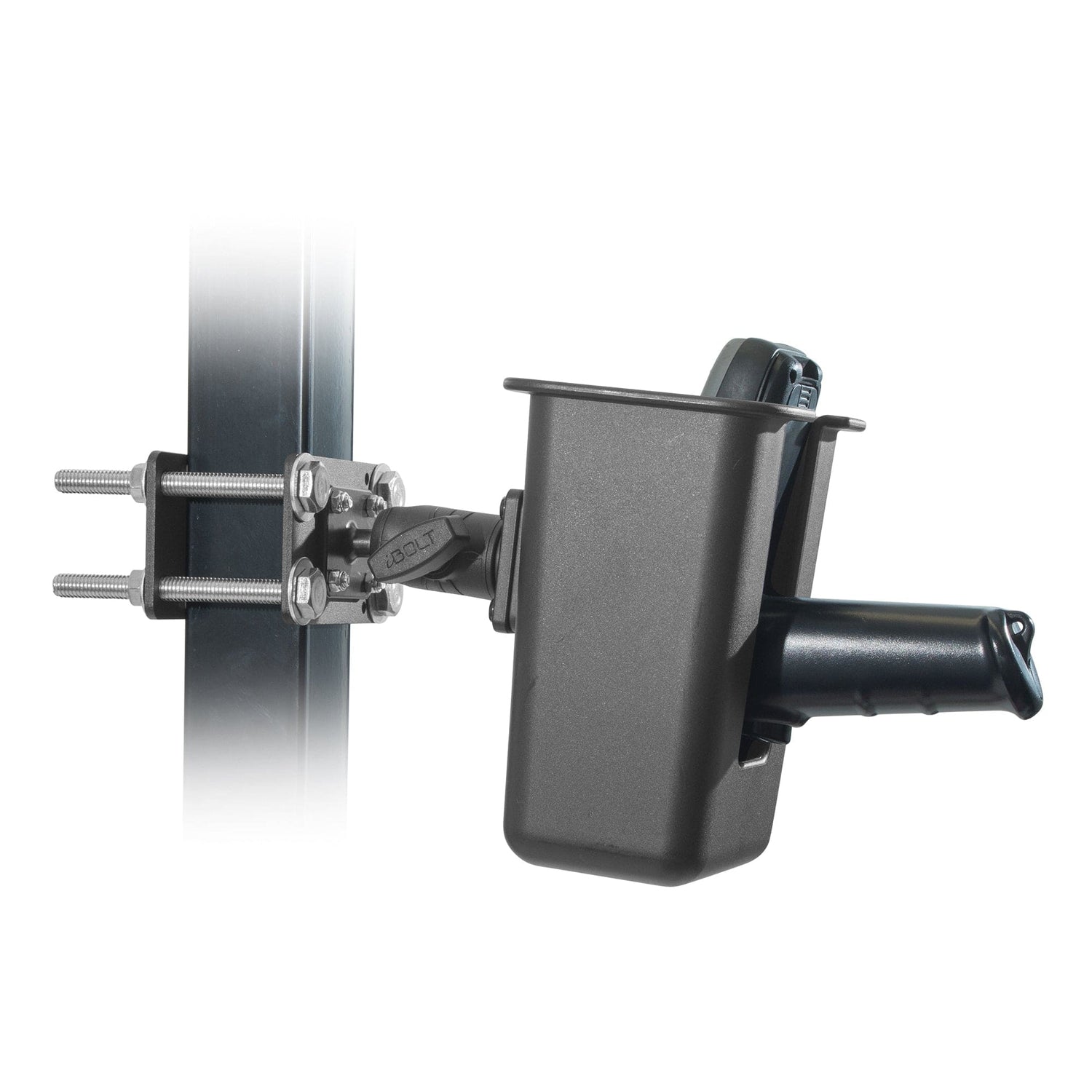

1. iBOLT XL Forklift Pillar Mount

Award: Best complete pillar configuration. This model pairs iBOLT's open XL scanner holder with a pillar attachment in one product listing. It is the clearest starting point when procurement wants a configured holder and base rather than a holder that still needs an arm and vehicle interface. Confirm the pillar geometry and the scanner envelope before ordering.

2. RAM Power-Grip XL Universal Scanner Gun Holder

Award: Best documented device list. RAM lists compatibility across selected Cognex, Datalogic, Honeywell, and Zebra devices, including Zebra MC3300, MC9300, and MC9400 families. The high-strength composite holder can connect through rear or bottom plate patterns. This listing is holder-focused, so a complete forklift installation needs a compatible RAM arm and base.

3. Arkon FLBKTHLSTR Front Guard Mount

Award: Best published pillar dimensions. Arkon specifies two 4 by 2.5 by 0.125 inch steel plates, a 3.75 inch shaft, 25mm ball joints, and an AMPS-backed polyester and zinc holder. Those dimensions make pre-purchase pillar checks more concrete. The open holster differs from a form-fit powered dock.

4. iBOLT XL IncrediBOLT 360 Pillar Mount

Award: Best iBOLT articulated pillar option. This configuration adds an adjustable arm between the pillar base and XL holder. It fits the buyer who needs to set reach and viewing position around controls rather than accept a fixed return point. More joints also mean installers should check clearance through the full adjustment range.

5. ProClip 216217 Large Universal Scanner Holder

Award: Best dimensional fit disclosure. ProClip publishes an interior envelope of 3.66 inches wide, 5.67 inches high, and 2.28 inches deep, plus an open trigger-handle slot. Its AMPS pattern attaches to a pedestal, forklift mount, cart mount, or flat surface. Treat it as a holder component, not a complete vehicle mount.

6. RAM Quick-Draw Spring Loaded Holder

Award: Widest published height adjustment. RAM states a 2 to 10.75 inch height range, 2.625 inch maximum width, 4.25 inch maximum depth, spring tension, and a 4-hole AMPS pattern. That adjustability helps mixed-device fleets, but the narrow published width makes measurement essential.

7. Gamber-Johnson 7160-1259

Award: Best alternate magnetic shortlist. Gamber-Johnson lists a flat-surface magnet mount with scanner holder in its material-handling peripheral range. It is worth considering where a suitable ferrous surface exists and drilling is undesirable. The category page publishes fewer fit details than several higher-ranked entries, which limits remote specification scoring.

8. iBOLT XL 88mm Magnetic Mount

Award: Best iBOLT movable configuration. The 88mm magnetic base changes the installation question from pillar geometry to surface material, flatness, and placement. It is useful for equipment that must be reconfigured, but a magnetic base should never be assumed compatible with every painted panel or nonferrous surface.

9. Havis PKG-MH-3008

Award: Best quote-ready industrial package. Havis identifies this as a universal barcode scanner bucket and mount within its material-handling line. It belongs on a commercial shortlist when a team prefers vendor-assisted configuration. Published online dimensions are limited, so request the drawing and validate the scanner and pillar before purchase.

10. Zebra FLB3678-C100F3WW

Award: Best DS3678-specific powered cradle. Zebra's DS36X8 reference guide identifies this as an IP65-sealed forklift cradle with charging, Bluetooth, and multiple interfaces for the cordless DS3678. It is not a universal holster. That narrow device fit is exactly why it is compelling for standardized DS3678 fleets and unsuitable as a general scanner bucket.

Choose by deployment, not rank alone

Start with the scanner. A powered Zebra cradle solves a different problem from an open universal bucket. Next document the mounting surface, pillar dimensions, acceptable drilling, and required reach. Finally, price a complete bill of materials. A low holder price is not comparable to a configured pillar mount if it excludes the arm and base.

For a broad universal holder supplied with pillar hardware, the iBOLT XL pillar configuration is our top commercial-value pick under this rubric. RAM and ProClip publish especially useful compatibility or dimensional data. Arkon gives installers strong pillar detail. Zebra is the specialist choice when the scanner fleet is standardized on its supported device.

FAQ

Is an AMPS holder a complete forklift mount? Usually not. AMPS describes a hole pattern. You may still need an arm, plate, clamp, magnetic base, fasteners, or vehicle-specific bracket.

Should a warehouse choose universal or form-fit? Universal holders can simplify mixed fleets. Form-fit cradles can add model-specific retention, charging, or communications, but only for named devices.

Can a magnetic scanner mount go on any forklift? No. Verify that the surface is ferrous, flat, accessible, and approved for mounting. Also inspect paint and clearance requirements.

What should be measured before a fleet order? Record scanner width, depth, height, trigger geometry, installed accessories, pillar dimensions, control clearance, and the operator's safe reach zone.

Explore the iBOLT barcode scanner collection or compare the official manufacturer pages above to build a complete configuration for your scanner and vehicle.
